SmartROC T35/T40 12 Hydraulic System
65 No: 7026962571.1.7027002891 en-US
12.7.5 Filling Hydraulic Oil
WARNING
Hydraulic Oil Under Pressure
There is a risk of personal injury when working with pressurized hydraulic systems.
u Use personal protective equipment.
1.
Check the return oil filter.
2.
Check that all the couplings and hoses that are normally filled with hydraulic oil are
clean.
3.
Activate the Enable hydraulic oil filler pump function in the Settings/Rig menu in
the control system.
4.
Connect the attached hose to the oil source.
5.

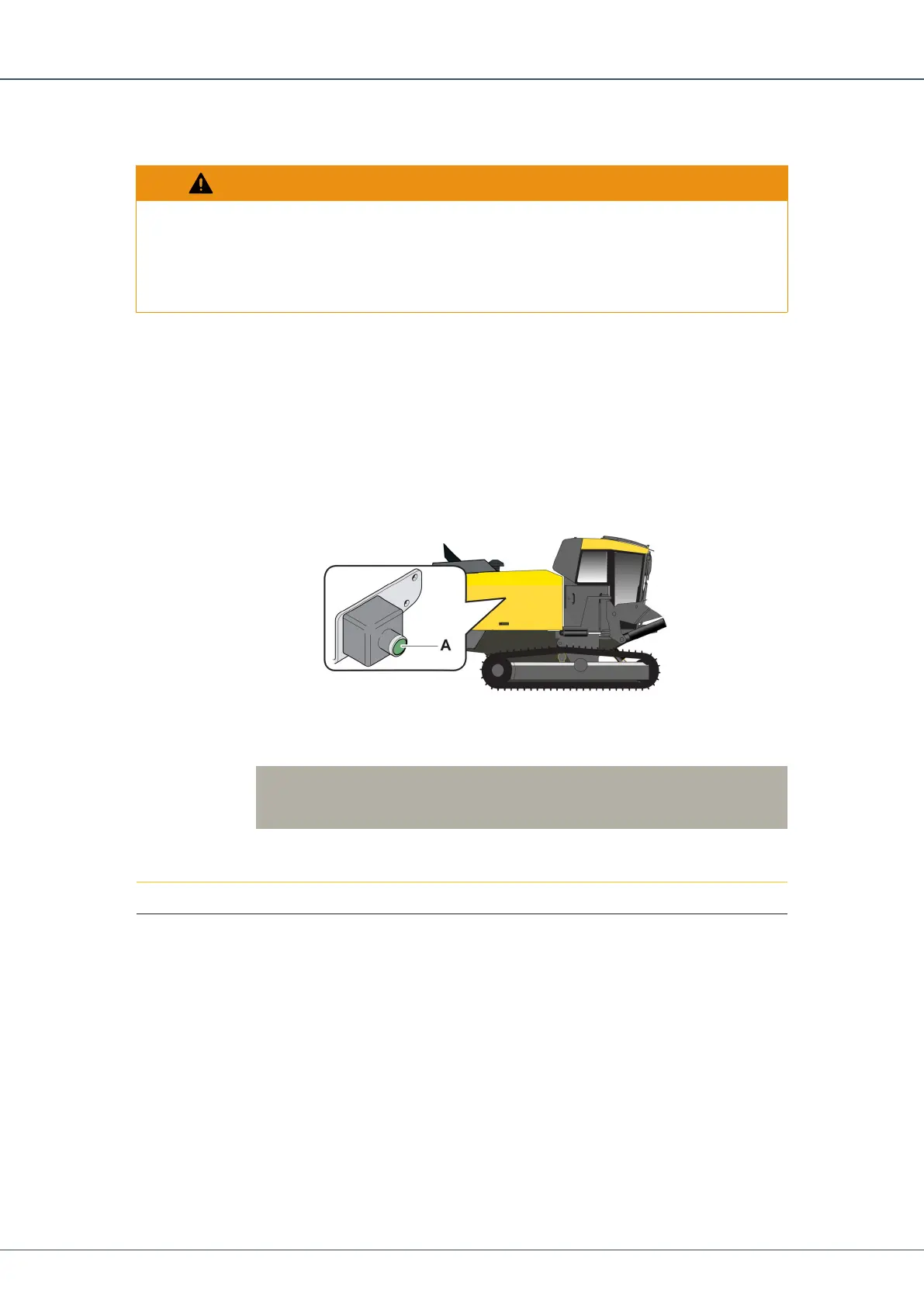

Press button (A) to start filling.
6.
Check that the lower sight glass is fully covered and the upper sight glass is half cov-
ered.
!
NOTE: The electric filler pump stops automatically when the hy-
draulic tank is full. It also stops if the source of oil runs out.
Hydraulic Oil Tank Volume
100 L (26.4 gal)
12.8 Hydraulic Filters
12.8.1 Return Oil Filter
The return oil filter cleans the oil before it returns to the tank. The filter cartridges should be
replaced according to the maintenance schedule. If the return filter pressure gauge on the
operator display indicates a clogged filter, all return oil filters must be changed immedi-
ately.
