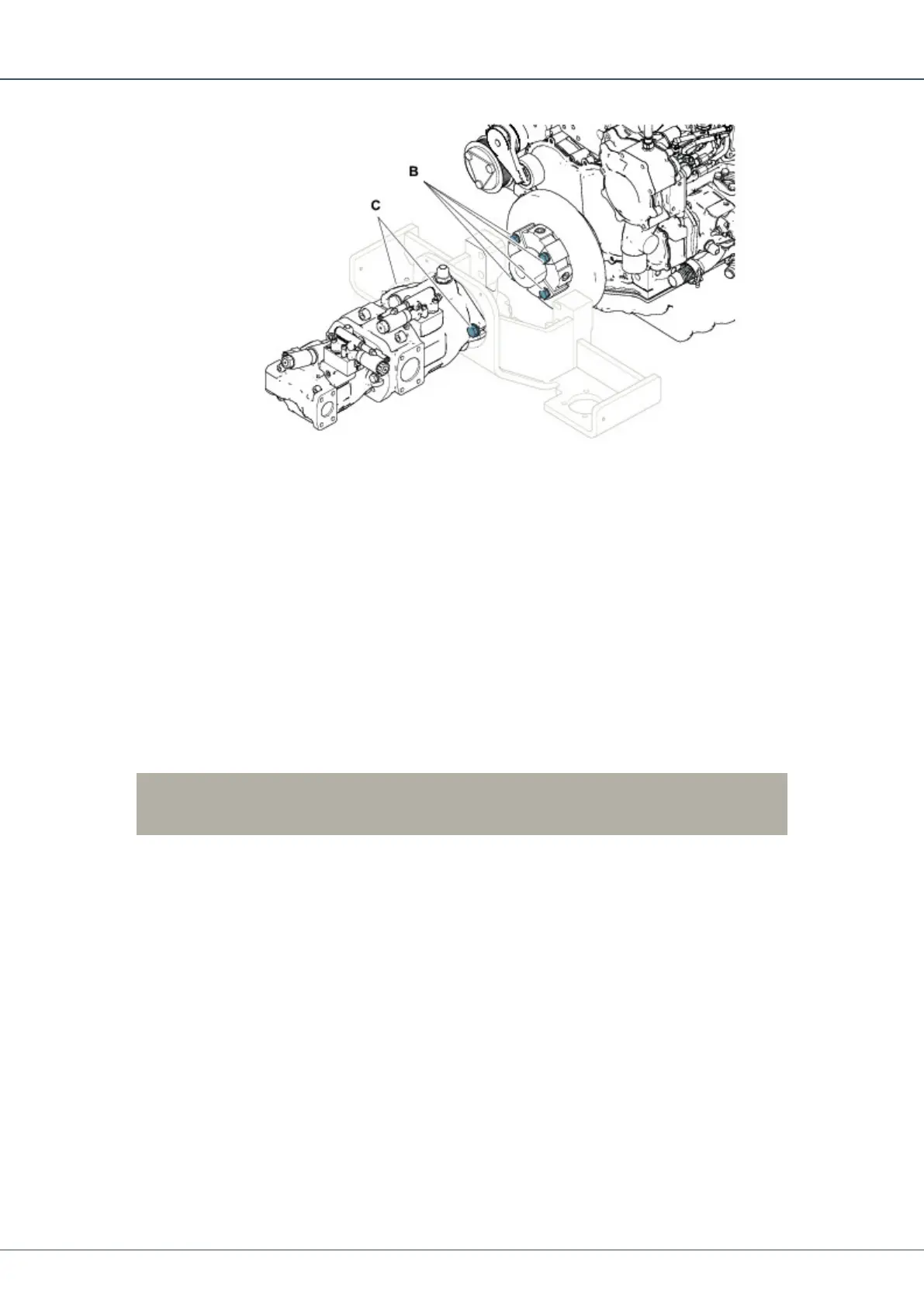

Remove the two bolts (C) to detach the pump.
6.
Replace the belt by inserting it through the clearance between the coupling rubber
and the shaft flange.
7.
Tighten the bolts (C).
8.
Refit the coupling rubber and tighten the bolts (B) to tightening torque 185 Nm
(136.44 lb-ft).
è
The belt is tensioned automatically when the lock-out assembly is removed from
the tensioning wheel.
9.
Reinstall the belt cover.
13.21 Air System
!
NOTE: Location and shape of air filter differs depending on brand and model.
The air filters consist of a filter housing (F) with cover (A), clamps (B), main cartridge (D),
safety cartridge (E), and evacuation valve (C). Air filtration is done in two stages. The first
stage comprises a cyclone and the second stage a normal filter. Both filtration stages take
place in the filter housing. The filter performance improves right up until it becomes
clogged. There is an indicator that is on the filter housing to advise when the filter cartridge
is clogged. The indicator is connected to the display in the cab. A warning symbol comes
on in the status bar at the bottom of the display if a filter is starting to clog.
It is important to keep the air filter and air cleaner in good condition so that the exhaust
gases are as clean as possible. Repeated disassembling and assembly can damage the
gasket between the insert and the filter housing. Smoke and poor engine performance can
be an indication of clogged filters.
