SmartROC T35/T40 12 Hydraulic System
66 No: 7026962571.1.7027002891 en-US
Symbol for Clogged Filter
12.8.2 Replace Return Oil Filter
The filter inserts are located in the hydraulic tank.
1.

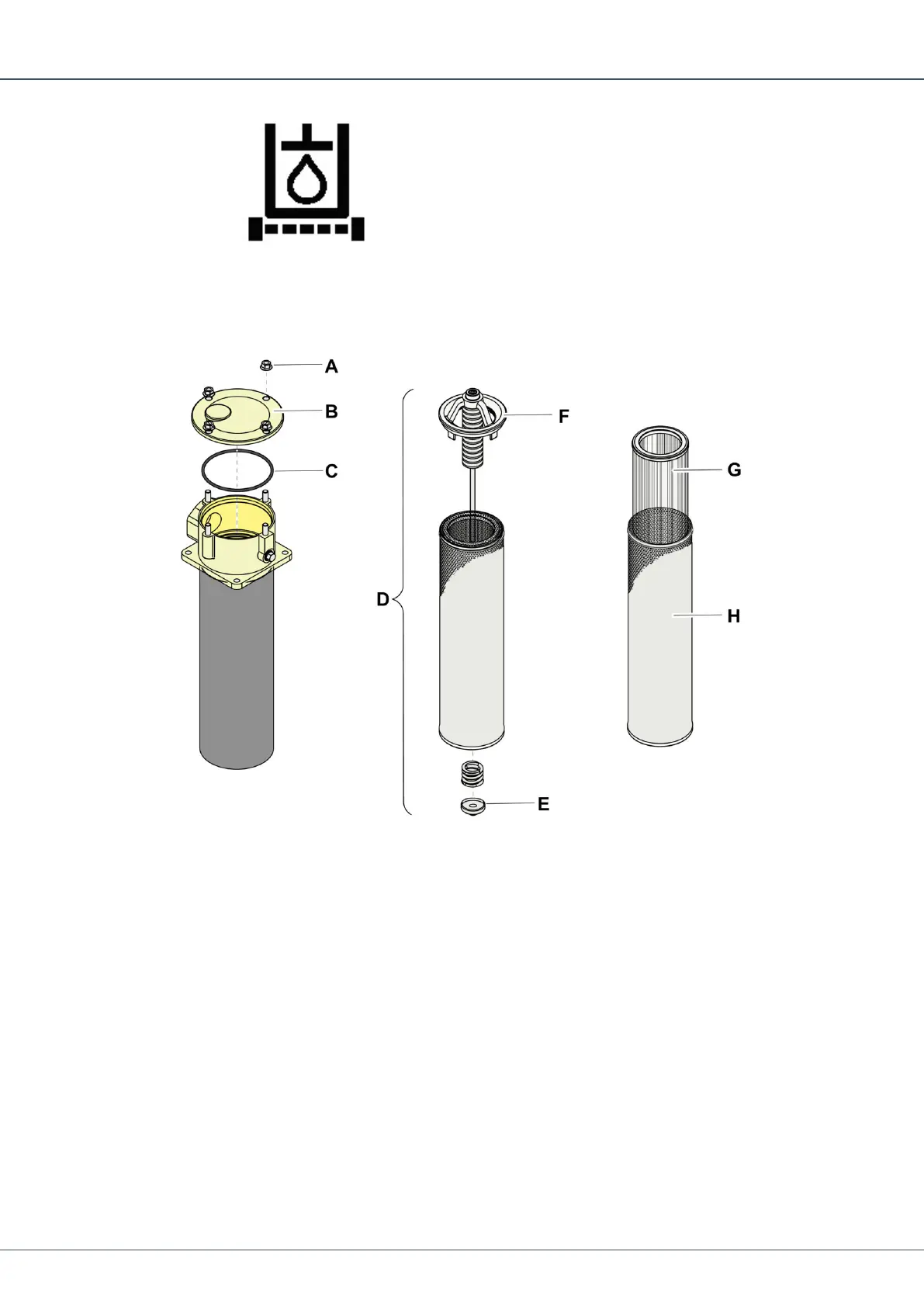

Clean on and around the filter cap. Loosen and remove the nuts (A).
2.
Lift off the cap (B) and replace the O-ring (C) if damaged.
3.
Lift out the filter cannister (D).
4.
Remove the nut (E). Lift out and clean the magnetic rod (F).
5.
Remove filter cartridge (G) from the cover (H) and replace with a new filter cartridge.
Only the filter cartridge is replaced. The filter cover is reused.
6.
Refit all parts.
