SmartROC T35/T40 9 Feed Unit
49 No: 7026962571.1.7027002891 en-US
7.
Remove the end plate (H).
8.
Pull the cylinder and fork backwards, out of the beam.
9.
Remove the pin (K).
10.
Remove the fork (J) from the spacer (L).
!
NOTE: Avoid removing the spacer (L). If the spacer must be removed, first measure
(SP) so the spacer can be replaced in the same position.
!
NOTE: Measurement SP = 492 mm (19.37 in.)
9.15 Tension Bushings for Spacers
The spacer at the front end of the cylinder is kept in place with a tension bushing. For the
feed to function properly, the measurement SP on the spacer must be correct. The mea-
surement varies depending on the feed length and type of feed.

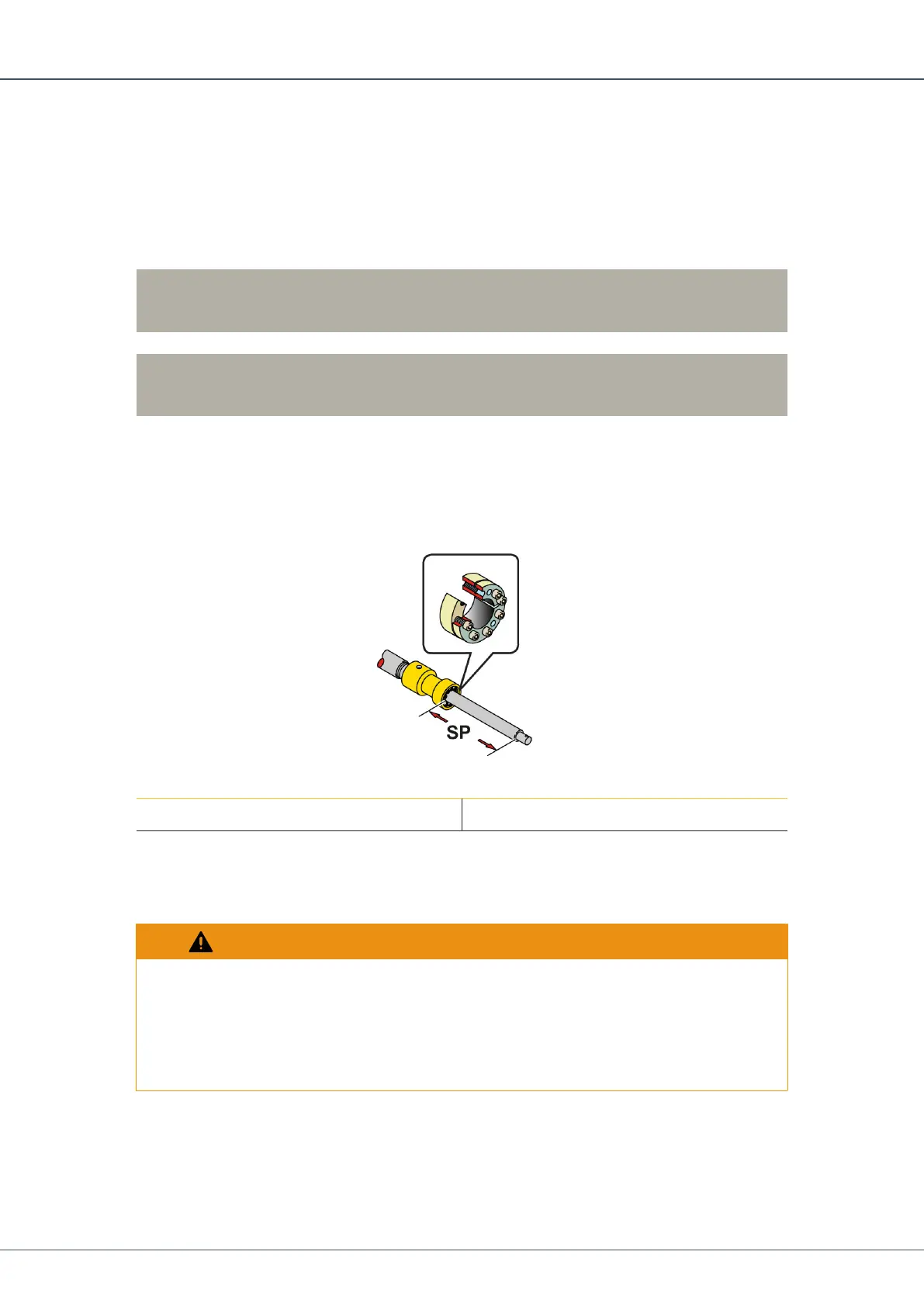

Spacer and Tensioning Bushing
Spacer Measurement (SP) 492 mm (19.37 in)
Table2: Spacer Measurement (SP)
9.15.1 Disassembling Tension Bushing for Spacer
WARNING
Disassembling and Assembling Components
Can cause personal injury.
u Components that could move or fall down must be securely supported or strapped in
place during service and maintenance work.
