Epiroc SmartROC T40 - Assembling Tension Bushing for Spacer

SmartROC T35/T40 9 Feed Unit
51 No: 7026962571.1.7027002891 en-US
9.15.2 Assembling Tension Bushing for Spacer
WARNING
Disassembling and Assembling Components
Can cause personal injury.
u Components that could move or fall down must be securely supported or strapped in
place during service and maintenance work.
WARNING
Heavy Objects
Can cause crushing injury or death.
u Do not stand under the heavy object being lifted.
u Use adequate lifting equipment.
WARNING
Moving Parts
Can cause personal injury.
u Shut off the machine and lock the battery isolation switch before starting any work.
u Make sure that the hydraulic pump is off and that the system is depressurized before
starting work.

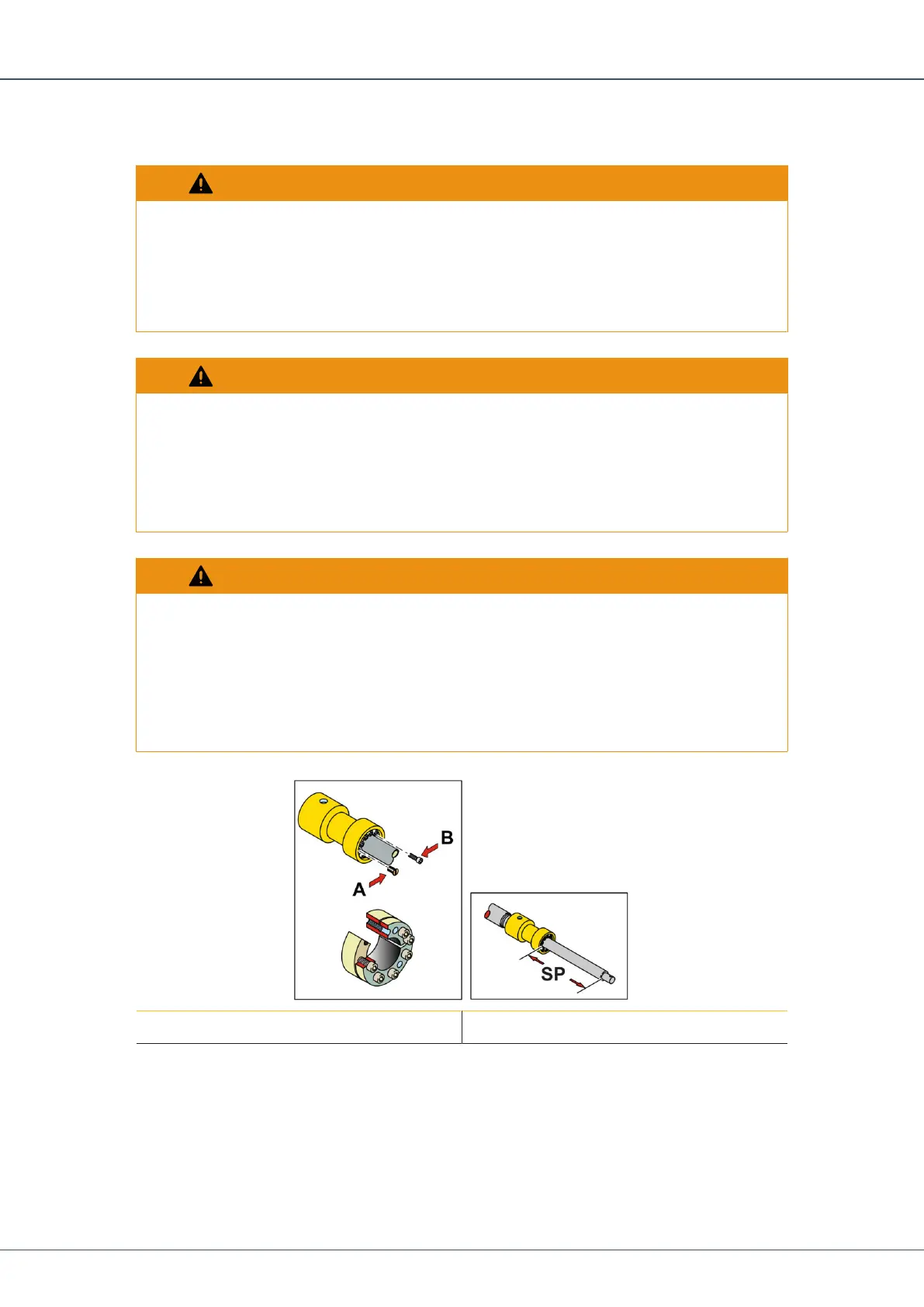

Spacer Measurement (SP) 492 mm (19.37 in)
Table4: Spacer Measurement (SP)
1.
Assemble the bushing and the bolts (B). Do not tighten the bolts (B).
2.
Install the spacer and bushing into the sleeve.
3.
Criss-cross tighten the bolts (B), turning them ¼ turn each time. Repeat until the tight-
ening torque is reached.
