SmartROC T35/T40 13 Diesel Engine

73 No: 7026962571.1.7027002891 en-US

Fuel Quality Sulphur Grade

Ultra Low Sulfur Diesel (ULSD)

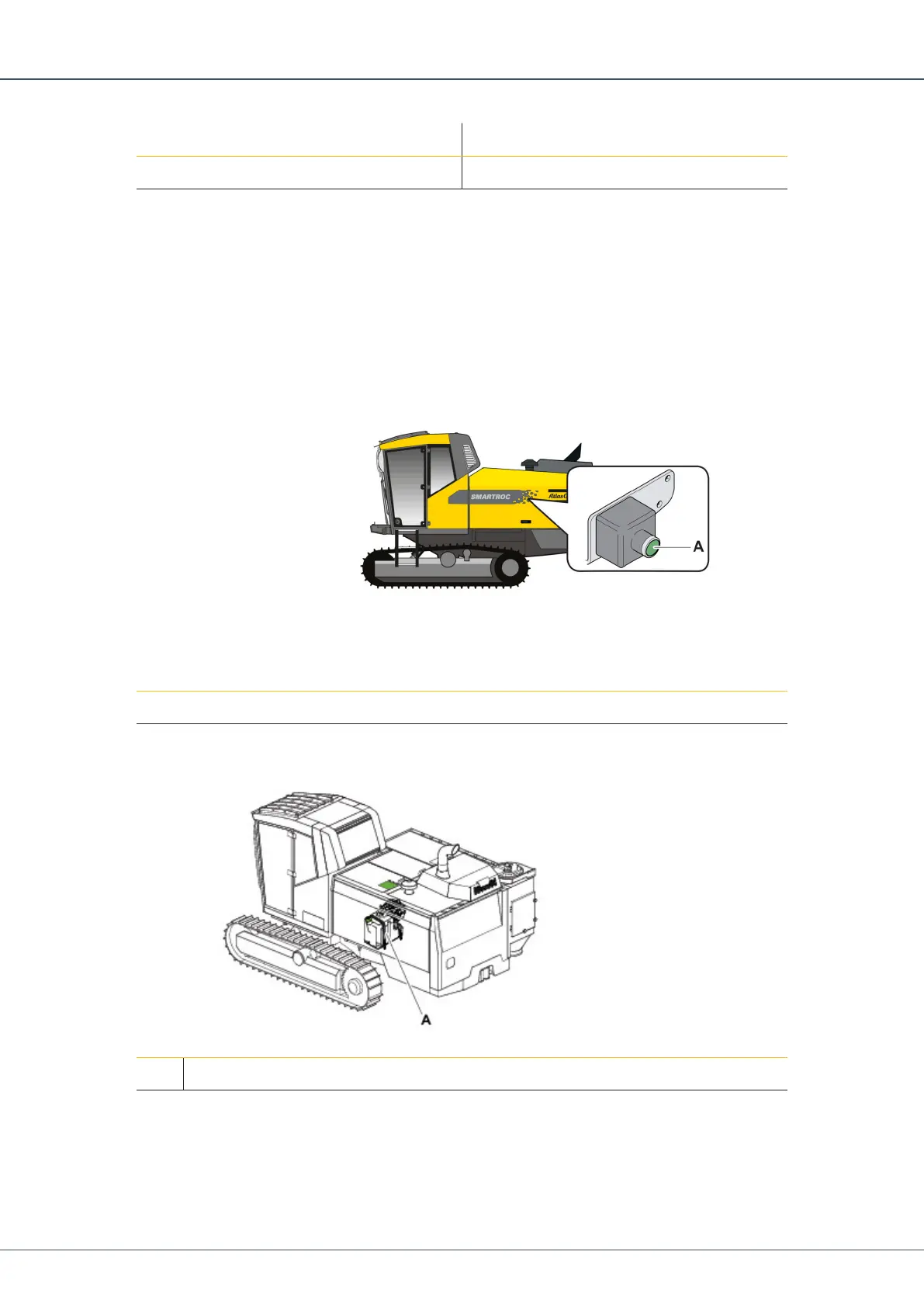

13.6 Filling Fuel Using Electric Fuel Filling System

This equipment is optional.

Activate the Enable diesel filler pump function on the Settings/Rig menu in the con-

trol system.

Check that the hose and the filter are clean.

Connect the attached hose to the fuel source.

Press button (A) to start filling.

The electric filler pump stops automatically when the fuel tank is full. It also stops if

the source of fuel runs out.

Diesel Tank Volume

370 L (97 gal)

13.7 Location of DEF Tank

A DEF tank
