Epiroc SmartROC T40 - Check Feed

SmartROC T35/T40 9 Feed Unit
37 No: 7026962571.1.7027002891 en-US
9.6 Check Feed
n

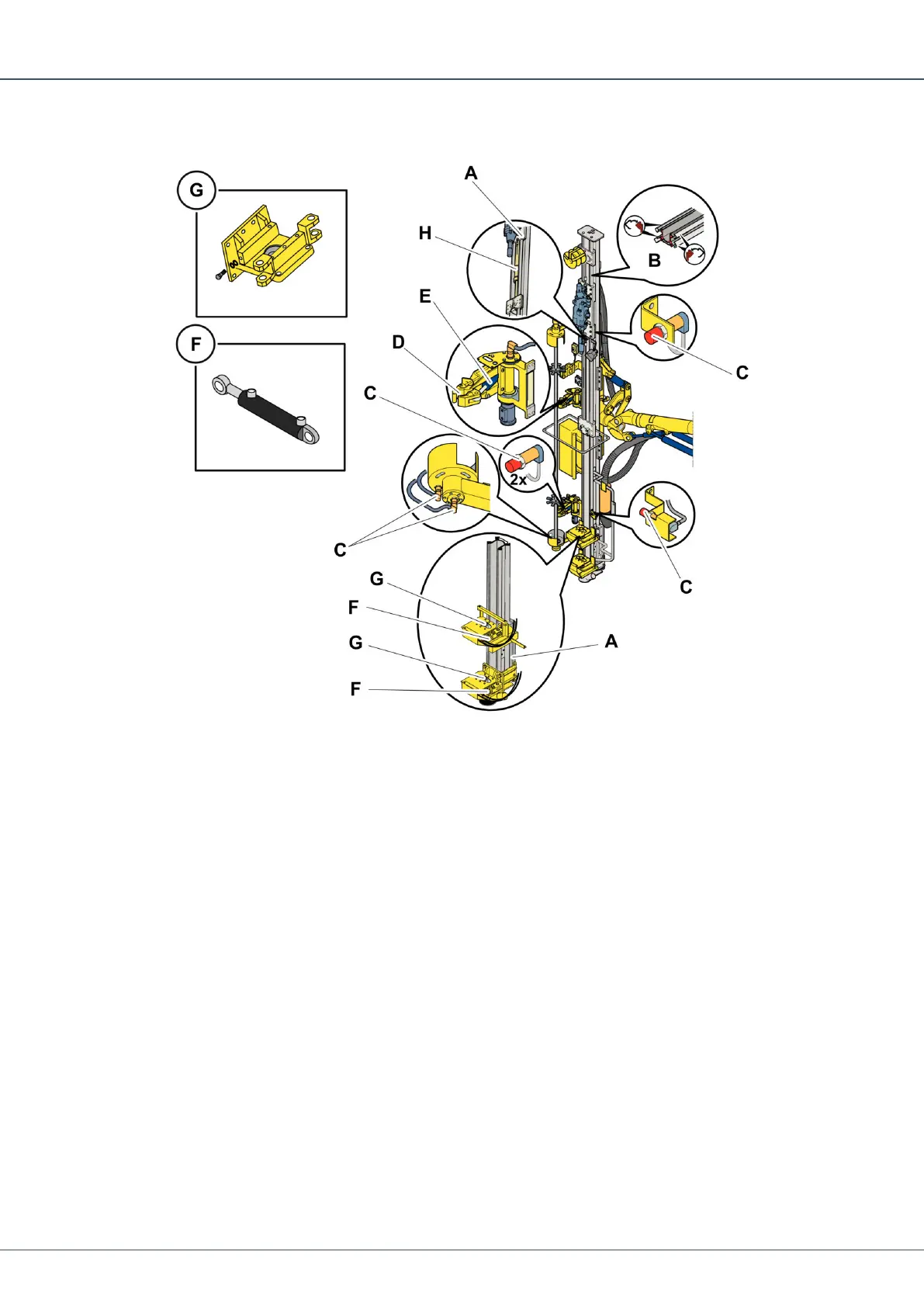

Check for damage on slide rails (A). Check that the play is 2–4 mm and the tightening
torque is of 185 Nm (136.4 lb-ft).
n
Check the slide pieces (B) for wear. Check that the thickness is at least 4 mm.
n
Check the mounting and function of the sensors (C).
n
Check the bushing halves (D) for wear and cracks.
n
Check the mounting of hydraulic cylinders (E).
n
Check the ball bearing play in cylinder lugs (F). Maximum play is 0.5 mm.
n
Check the drill-steel support halves (G) for adjustment, wear, and cracks.
n
Check the attachment of the feed cylinders (H) and check for damage.
