10 Lubrication System for Rock Drill
10.1 Check Rock Drill
n

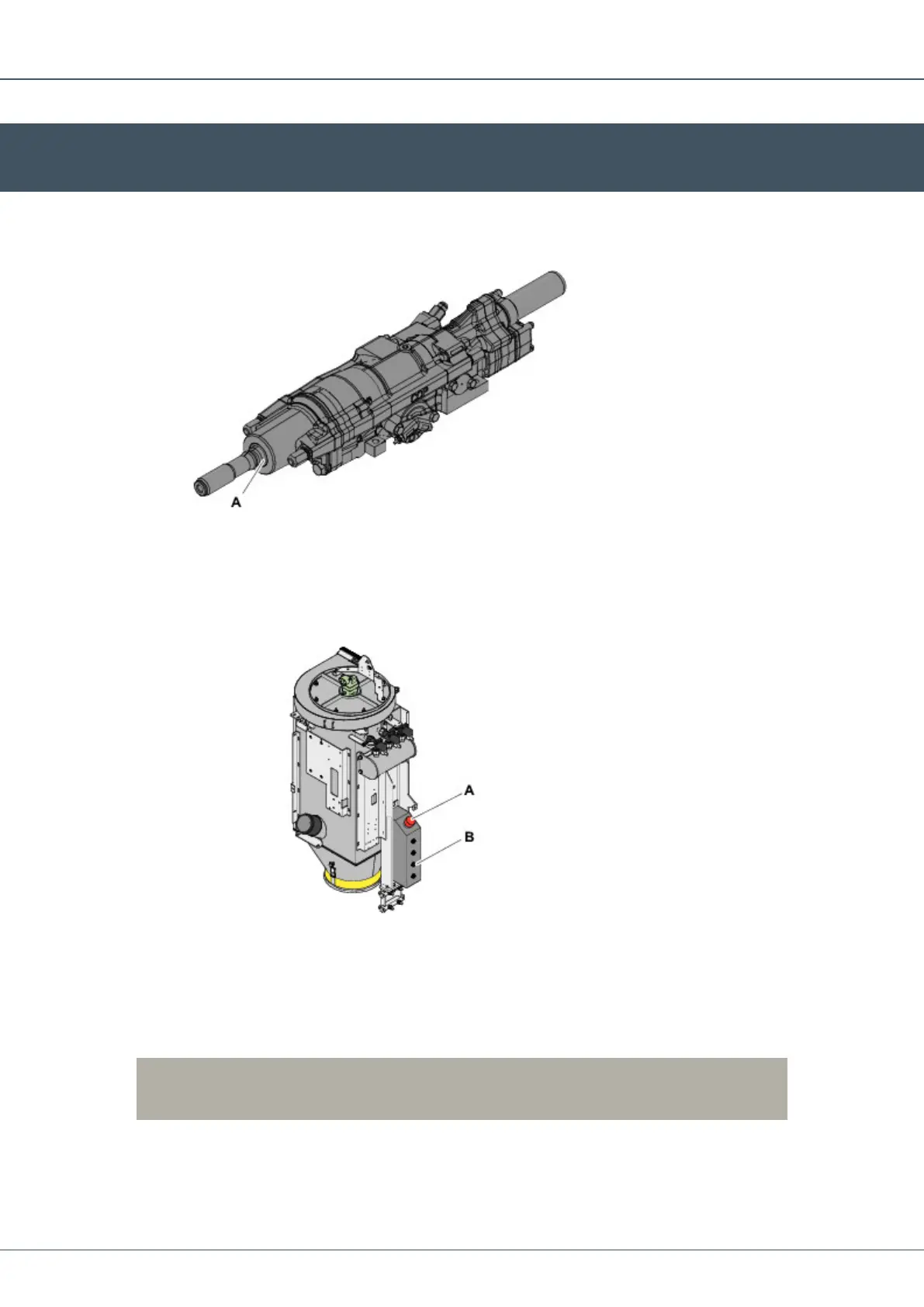

Visually check that the oil trickles out between the front and the shank adapter (A).
10.2 Check Lubricant Level
The lubrication tank is attached on the dust collector.
n
Check the tank and connections for signs of leakage.
n
Check that the lubricant level is above the second sight glass (B) from the bottom.
n
Top up the lubricant, through filler (A) if necessary. Use a funnel with strainer when
refilling.
!
NOTE: The lubricant level must not be below 40 mm (1.6 in). If the lubrication system
is drained, the operator must bleed the system.
10.3 Drill Lubrication Pumps
The lubrication pumps are located behind the lubricant tank.
