SmartROC T35/T40 9 Feed Unit

43 No: 7026962571.1.7027002891 en-US

9.8 Check Rod Handling

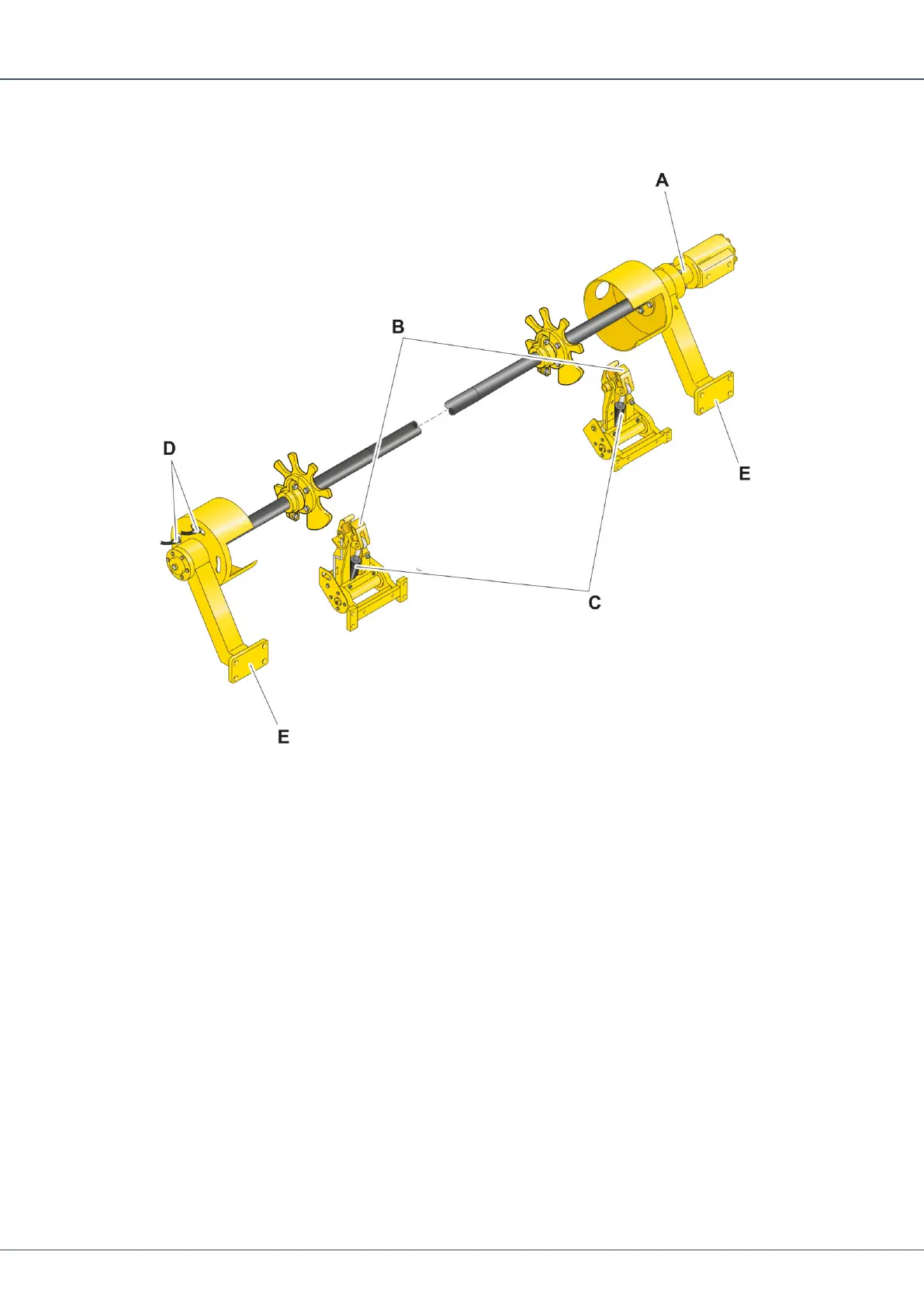

Check the attachment of the hydraulic motor (A). Applies only to machines installed

with RHS.

Check for wear and cracks on the bushing halves (B).

Check the attachment of the hydraulic cylinders (C).

Check the attachment and functionality of the sensors (D). Applies only to machines

installed with RHS.

Check the bracket (E) for cracks and proper attachment. Applies only to machines in-

stalled with RHS.
