SmartROC T35/T40 9 Feed Unit
41 No: 7026962571.1.7027002891 en-US
!
NOTE: The hoses are correctly adjusted as they do not hang down
when the feeder is in the horizontal position.
9.6.2 Replacing Slide Rails
WARNING
Sharp Edges
Worn slide rails are sharp and can cause injuries.
u Use pliers or a crowbar when removing the slide rails.
u Never remove slide rails by hand.
Precondition
p
Slide rails must be replaced if they are worn or severely scratched.
p
Before replacing the front slide rails, run the rock drill or rotation unit to its rear end posi-
tion.
p
Before replacing the rear slide rails, run the rock drill or rotation unit to its front-end posi-
tion.
1.
Remove the cradle for the rock drill, intermediate drill rod support, and the water hose
drum from the beam.
2.

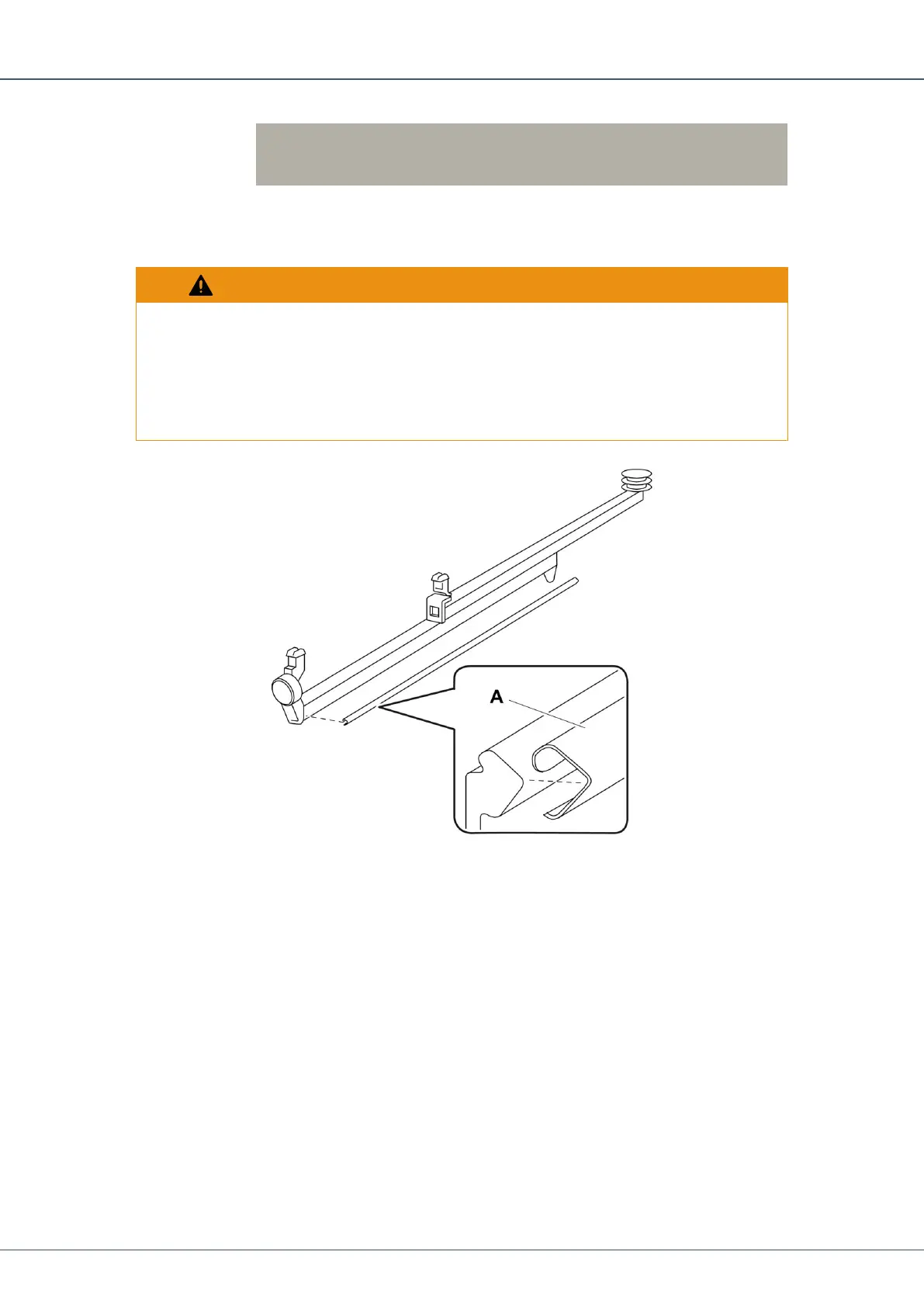

Remove the slide rails (A) by prising the lower edges of the bars outwards.
3.
Clean the beam surfaces thoroughly.
4.
Install the new slide rails so that the larger edge on the slide rail faces up. Press the
rails in place by hand. Use a hammer and a wooden block.
5.
Install the rock drill cradles, intermediate drill rod support, and water hose drum again.
