SmartROC T35/T40 13 Diesel Engine

78 No: 7026962571.1.7027002891 en-US

13.14 Replace Preliminary Fuel Filter

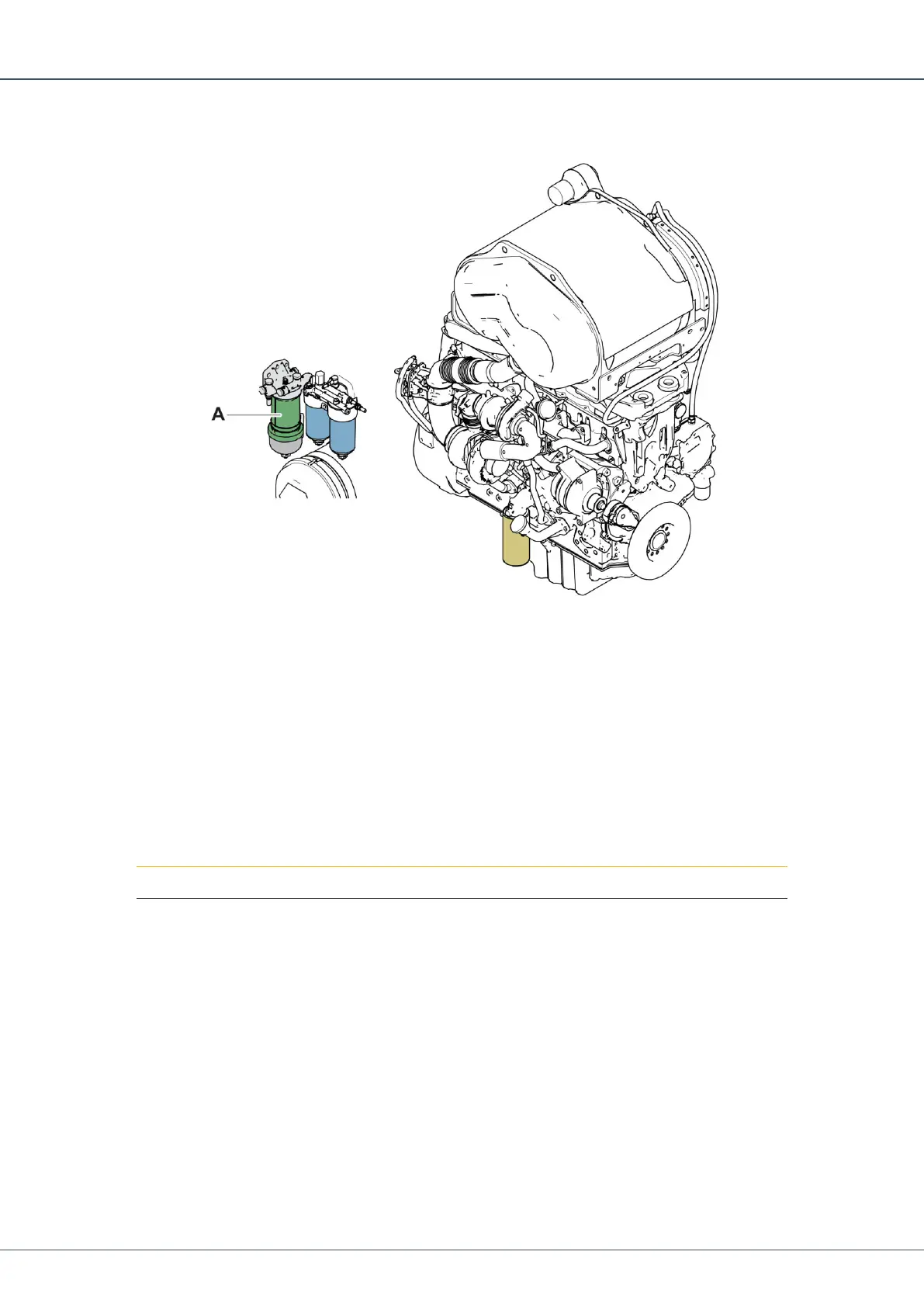

Loosen the preliminary fuel filter (A) using a suitable tool.

Collect any residual fuel.

Clean the surface of the filter holder.

Oil the rubber seal of the new fuel filter sparingly.

Tighten the filter all the way by hand.

Tighten the filter an extra half turn using a suitable tool.

Check that the fuel filter does not leak.

See Reference Documentation

Diesel engine instruction manual
