SmartROC T35/T40 13 Diesel Engine

86 No: 7026962571.1.7027002891 en-US

NOTE: Replace air filter cartridge every second year irrespective of how many hours

the diesel engine has been running.

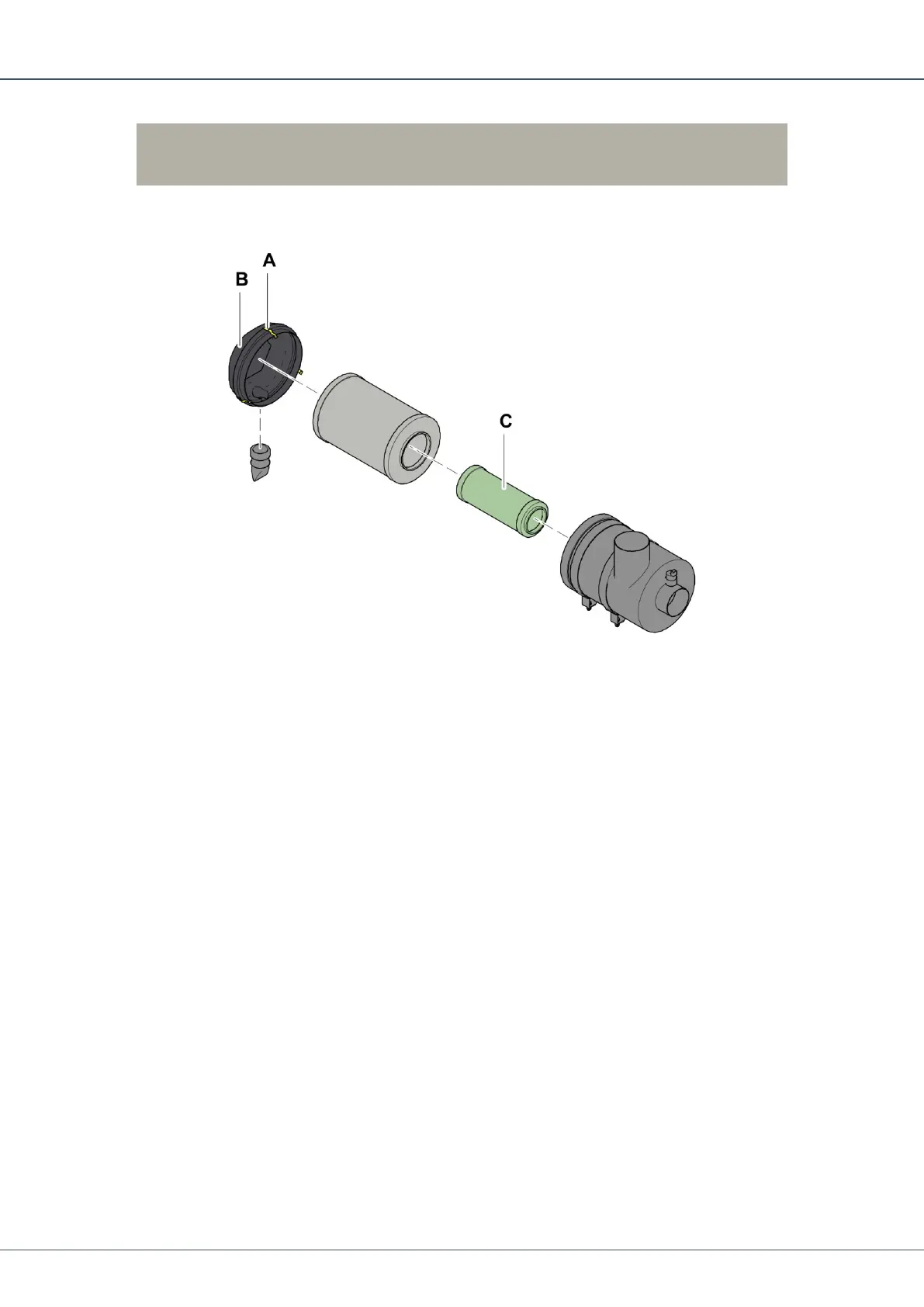

13.21.4 Replace Air Filter Safety Cartridge

Remove the clamps (A).

Remove the cover (B).

Pull out the safety cartridge (C).

Cover the air outlet with adhesive tape.

Clean inside the filter housing and the lid.

Install the new safety cartridge (C).

Install the cover (B) and attach the clamps (A).
