SmartROC T35/T40 9 Feed Unit

48 No: 7026962571.1.7027002891 en-US

Precondition

Hydraulic system is depressurized.

Operate the rock drill cradle to about half the feed length.

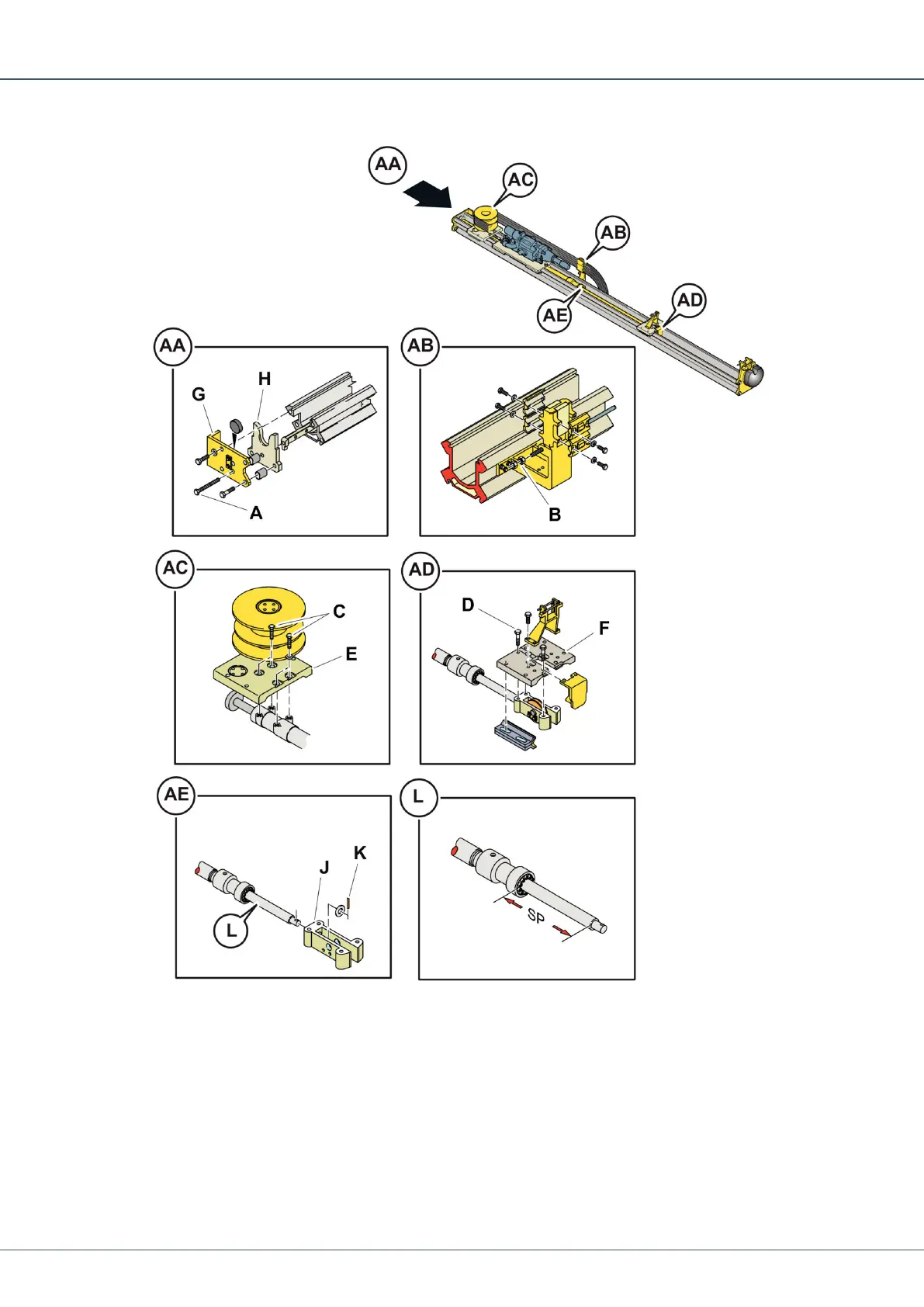

Relieve the tension from pull and return ropes with bolt (A) and nut (B).

Remove the bolts from the center of the water hose drum and lift the entire drum.

Disconnect the hoses at the hose retainer.

Loosen bolts (C) and (D) on cradle plates (E) and (F).

Remove bolt (A) from the end piece (G).
