DISASSEMBLY/ASSEMBLY Disassembly Procedures 162
Confidential
When installing the Scanner Motor Unit, be sure of the following.
 Route the Scanner Motor cable through the grooves (x3) of the
Scanner Lower Housing. (See
Fig. 4-115.)
 Align the positioning holes (x3) of the Scanner Motor Unit with
the dowels (x3) of the Scanner Lower Housing. (See
Fig. 4-115 .)
 Route the grounding wire as shown below and in Fig. 4-122.
(Artisan 810/835/837/PX810FW/TX810FW/PX820FWD/
TX820FWD/PX830FWD:
Fig. 4-116, Artisan 710/725/730/
PX710W/TX710W/PX720WD/TX720WD/PX730WD/
TX730WD:
Fig. 4-117.)

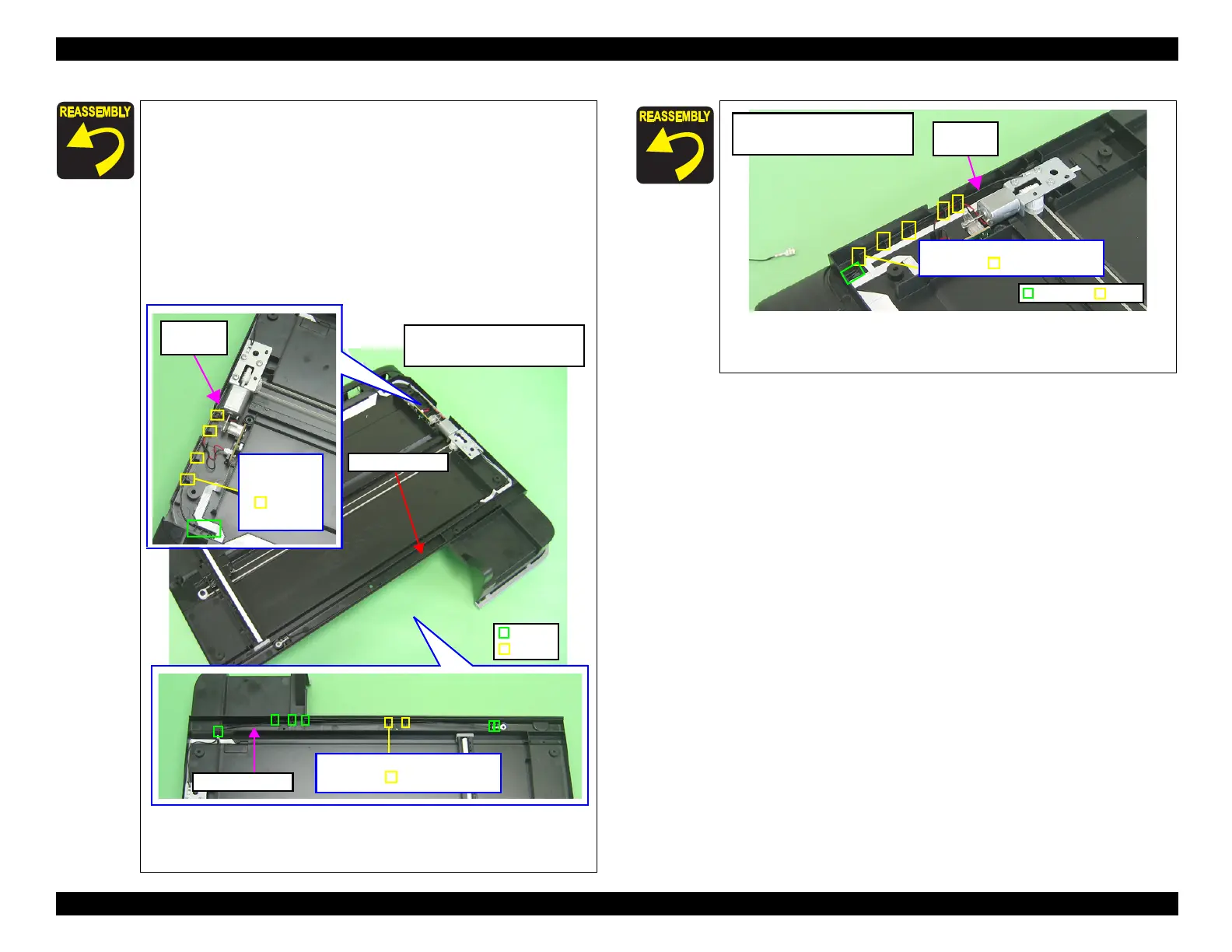

Figure 4-116. Routing the Grounding Wire
(Artisan 810/835/837/PX810FW/TX810FW/PX820FWD/
TX820FWD/PX830FWD)
Artisan 810/835/837/PX810FW/
TX810FW/PX820FWD/
TX820FWD/PX830FWD
Grounding
Wire
Route the
grounding wire
between the ribs
(x4) and
frame.
Rib
Groove
Route the grounding wire between
the ribs (x2) and frame.
Grounding wire
Grounding wire
Figure 4-117. Routing the Grounding Wire
(Artisan 710/725/730/PX710W/TX710W/PX720WD/TX720WD/
PX730WD/TX730WD)
Rib
Route the grounding wire between
the ribs (x5) and frame.
Groove
Grounding
Wire
Artisan 710/725/730/PX710W/
TX710W/PX720WD/TX720WD/
PX730WD/TX730WD
