Epson Artisan 810/835/837/710/725/730/Epson Stylus Photo PX810FW/TX810FW/PX820FWD/TX820FWD/PX830FWD/PX710W/TX710W/PX720WD/TX720WD/PX730WD/TX730WD
Revision G
DISASSEMBLY/ASSEMBLY Disassembly Procedures 167
Confidential

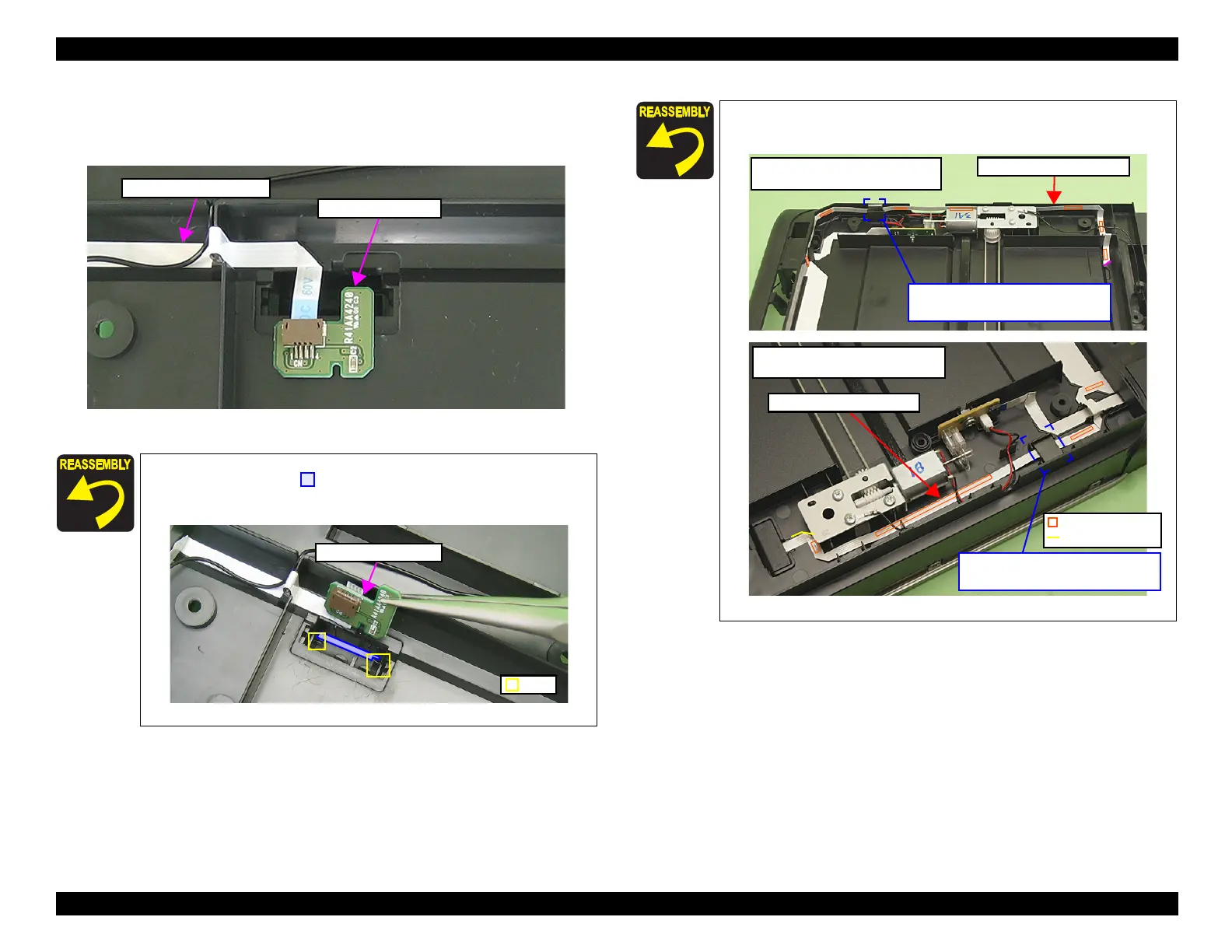

2. Disconnect the Cover Open Sensor FFC from the connector of the Cover
Open Sensor, and remove the Cover Open Sensor from the Scanner Lower
Housing.
Figure 4-126. Removing the Cover Open Sensor (2)
When attaching the Cover Open Sensor, insert it into the space
inside the ribs (x2)
of the Scanner Lower Housing as shown
in Fig. 4-127.
Figure 4-127. Attaching the Cover Open Sensor
Cover Open Sensor
Cover Open Sensor FFC
When routing the Cover Open Sensor FFC, route it as shown
below and in
Fig. 4-122.
Figure 4-128. Routing the Cover Open Sensor FFC
Rib
Double-sided tape
Artisan 810/835/PX810FW/
TX810FW/PX820FWD/TX820FWD
Artisan 710/725/PX710W/
TX710W/PX720WD/TX720WD
Cover Open Sensor FFC
Cover Open Sensor FFC
Put FFC through ferrite core, and
secure it with double-sided tape (x7).
Put FFC through ferrite core, and
secure it with double-sided tape (x4).
To Next Page
