Part 2: Maintenance 5. Replacing the Motors
109

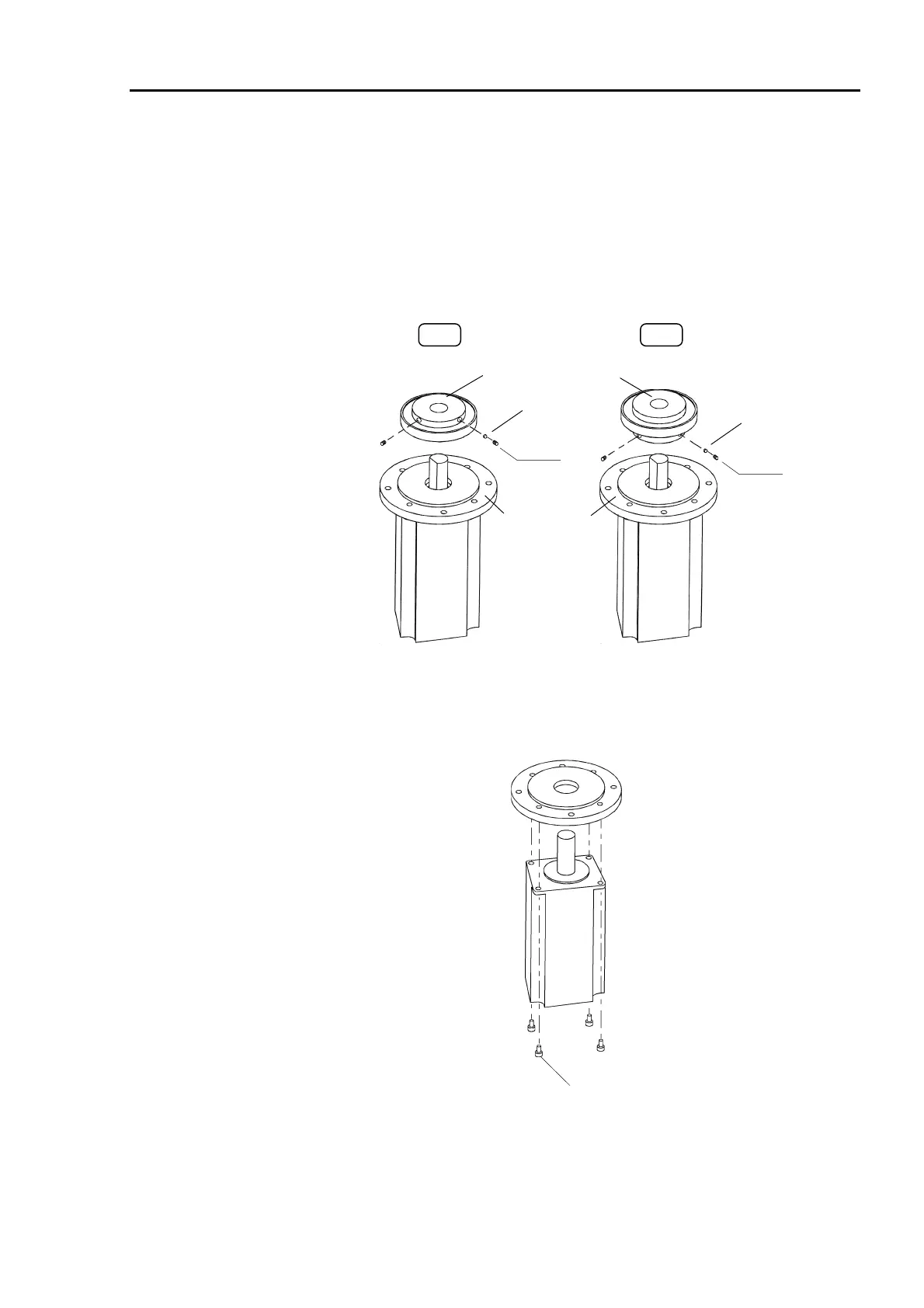

(5) Using a hexagon head wrench (2.5mm wide) in the screw holes of the waveform
generator, remove the two flat point setscrews (M5×6). Remove the waveform
generator from the motor. One of the setscrews has a brass bush inside which must
not be lost.
Between the ES and EL series, the direction in which the waveform generator is
attached is different.
Bush
M5
×
6
Waveform generator
ES EL
Motor flange
Bush
M5
×
6
(6) Remove the four bolts (M5
×
12) from the motor and remove the motor flange.
M5
×
12
To Next Page
