Part 1: Setup & Operation 12. Protected Model
75

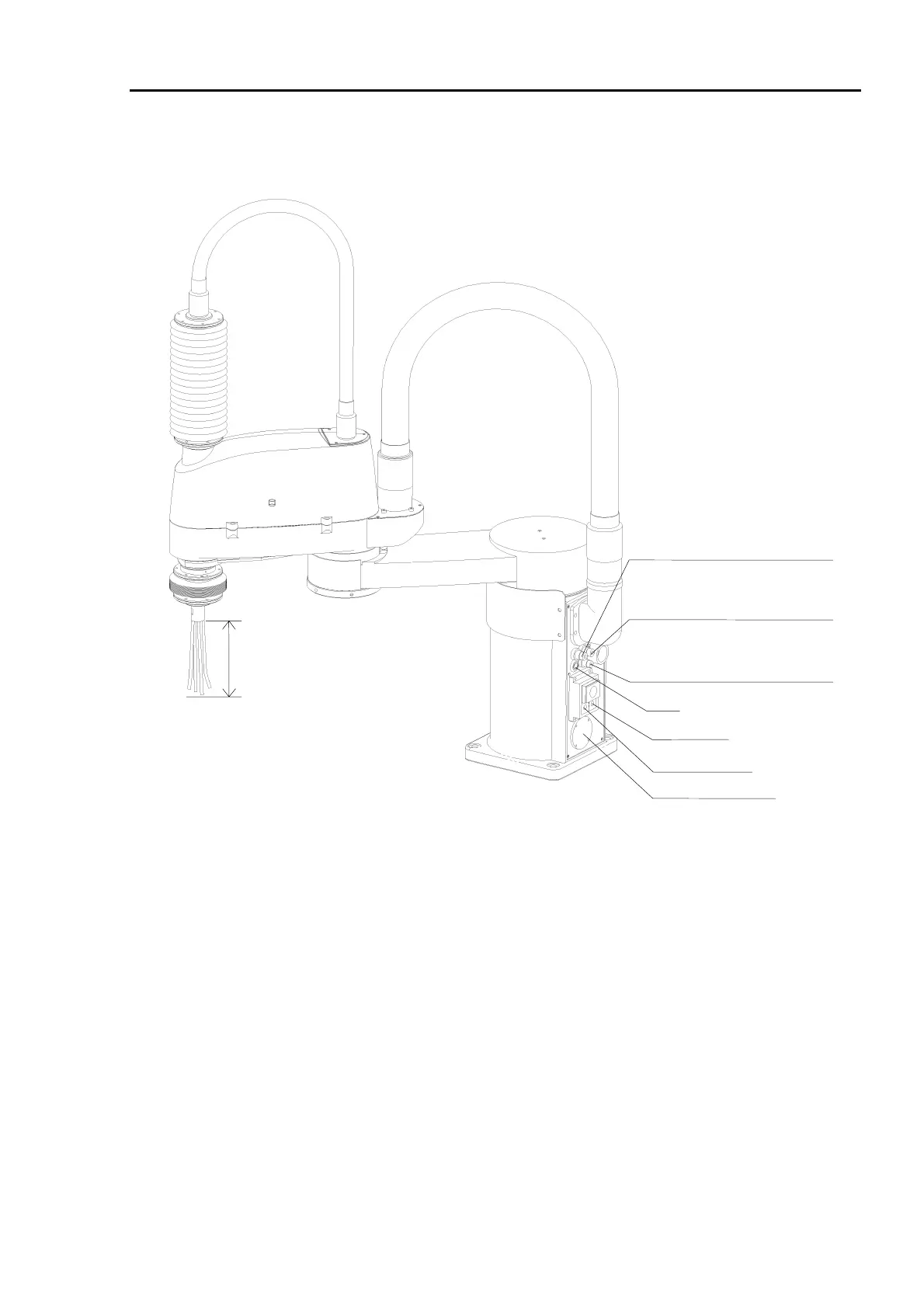

0.8 m
Fitting (black) for
φ
6 mm pneumatic tube
Connect to
φ
4 mm (black) pneumatic tube
on the end effector
Fitting (white) for
φ
6 mm pneumatic tube
Connect to
φ
4 mm (blue) pneumatic tube
on the end effector
Fitting for
φ
4 mm pneumatic tube
Connect to
φ
4 mm (yellow) pneumatic
tube on the end effector
Spare
Signal cable
User wire (10 m)
Encoder reset cover
