Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 241
Confidential

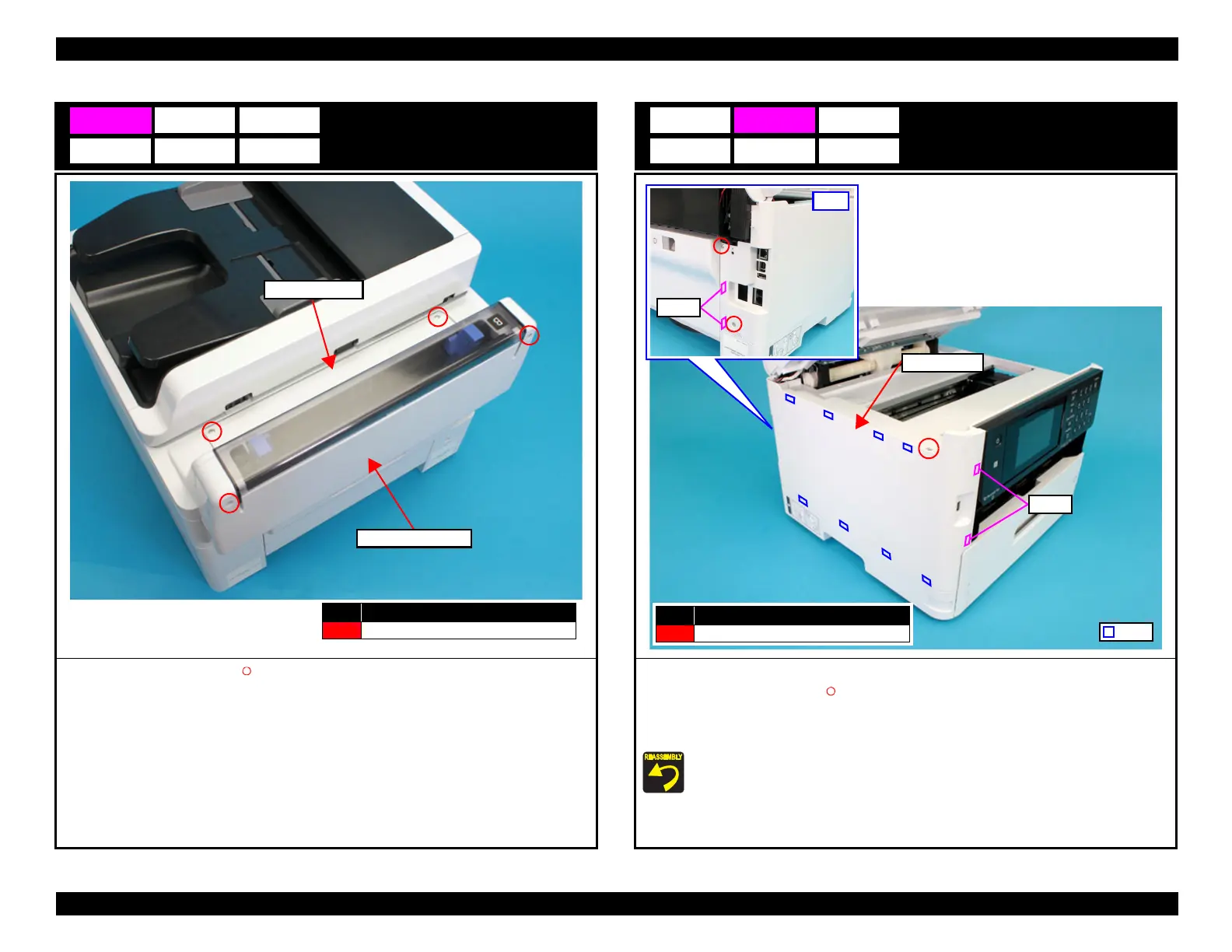

ASF Front Cover
1. Remove the four screws (S4: ) that secure the ASF Front Cover.
2. Remove the ASF Front Cover upward while slightly bending the Rear Cover (Back) toward
the back.
A1 B1
D1 E1
C1
ASF Front Cover
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Rear Cover (Back)
Housing Left
1. Open the ADF/SCN Unit.
2. Remove the three screws (S4: ) that secure the Housing Left.
3. Lift the Housing Left to release the two hooks on the front side of the Housing Left.
4. Disengage two hooks on the rear side of the Housing Left, and remove the Housing Left.
Insert the eight tabs on the Housing Left to the positioning hokes of the Housing
Upper and the Ink Supply Unit.
B2
Housing Left
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Hooks
Rear
Hooks
Tab

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
