Paper Guide

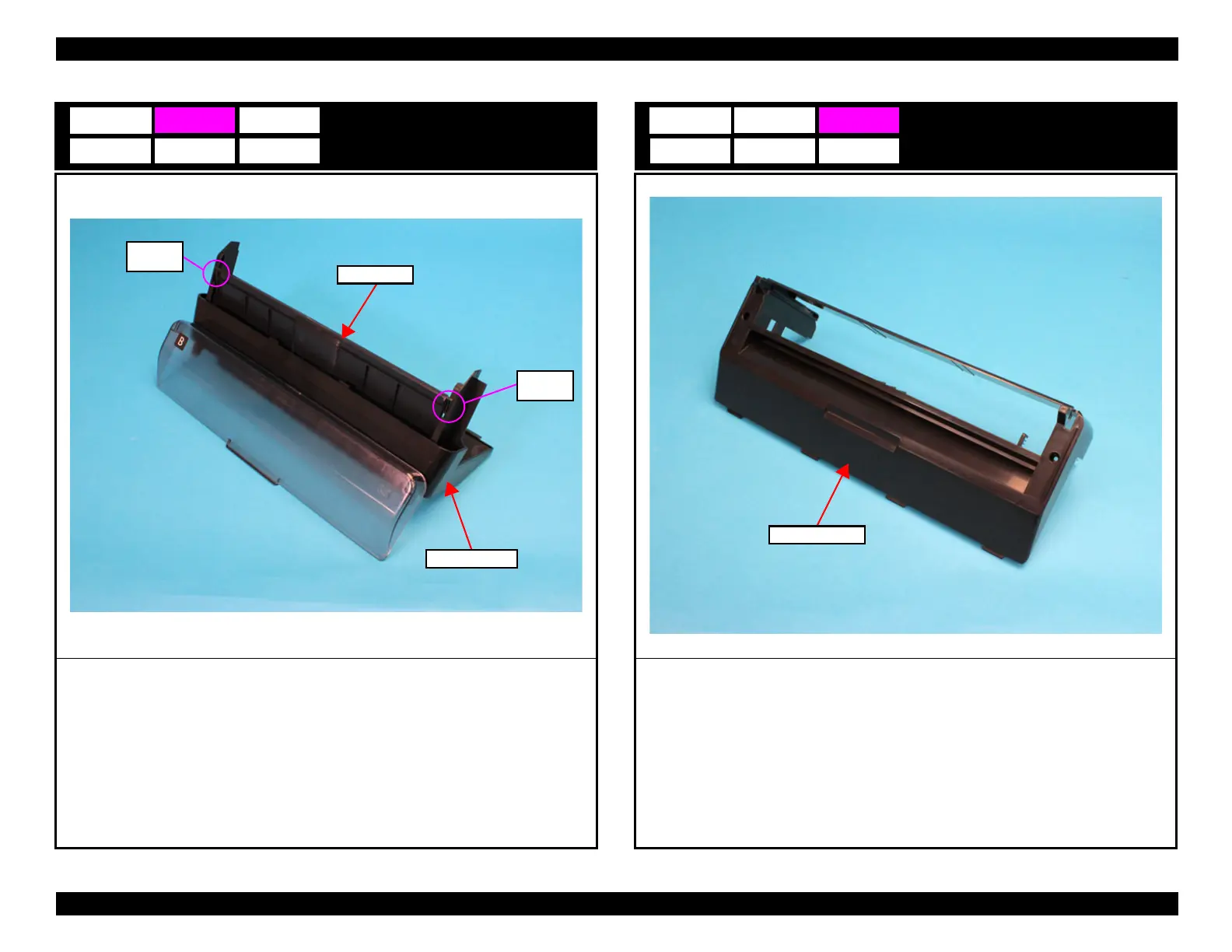

1. Disengage two tabs of the Paper Guide from the grooves of the Housing Rear, and remove
the Paper Guide.
B3 C4
Paper Guide
Tab and
Groove
Housing Rear
Tab and
Groove
Housing Rear
C5
Housing Rear
