EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 259
Confidential

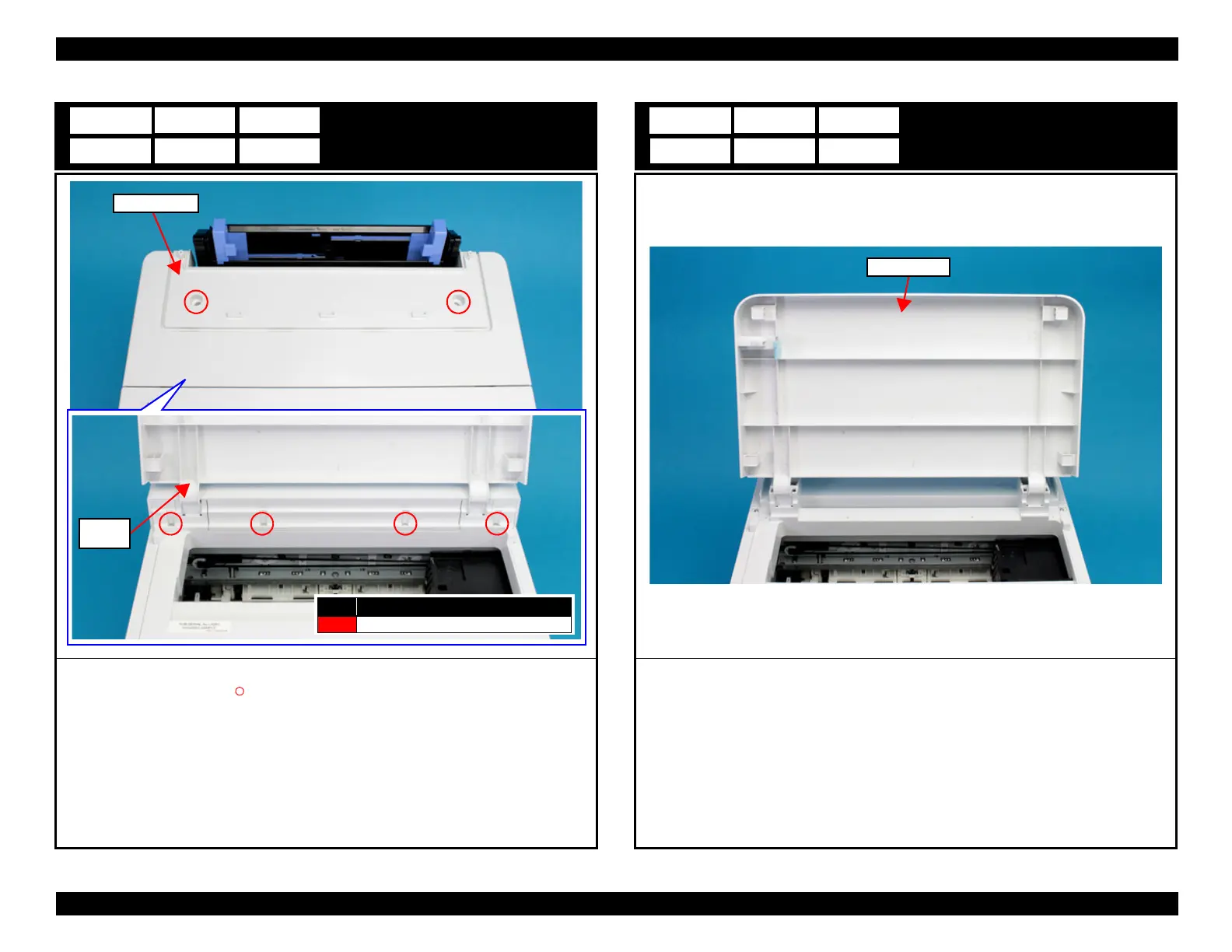

Housing ASF
1. Open the Printer Cover.
2. Remove the six screws (S4: ), then remove the Housing ASF.
D3 E3
F3
Housing ASF
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Printer
Cover
Printer Cover
1. Remove the Printer Cover upward.
D4 E4
F4
Printer Cover
