Disassembly/assembly Disassembly/Reassembly Procedures 260
Confidential

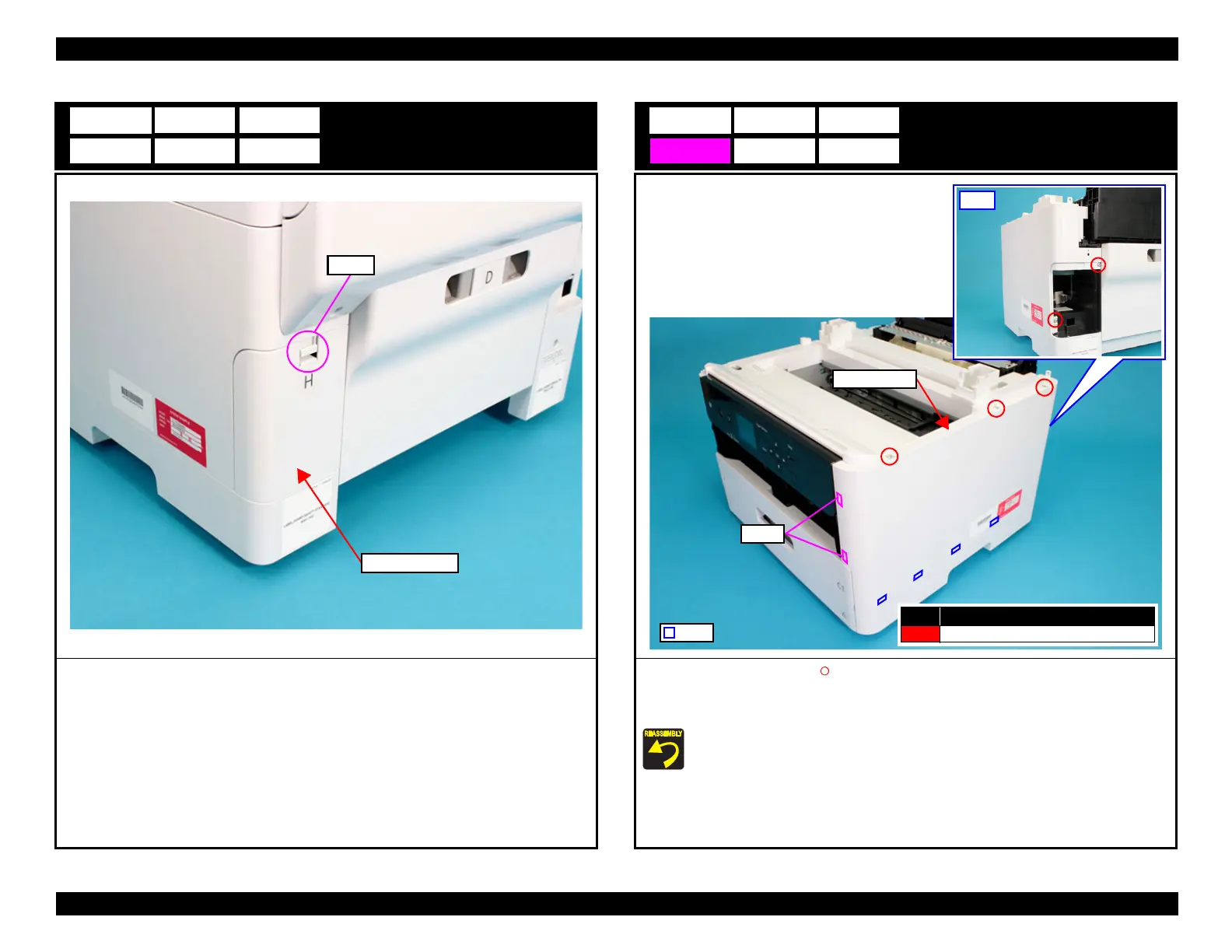

Ink Eject Cover
1. Disengage the hook, and remove the Ink Eject Cover.
D5 E5
F5
Ink Eject Cover
Hook
Housing Right
1. Remove the five screws (S4: ) that secure the Housing Right.
2. Lift the Housing Right upward to release the two hooks on the front side of the Housing
Right, and then remove the Housing Right.
Insert the four tabs of the Housing Right to the positioning holes of the Ink Supply
Unit.
D6 E6
F6
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Housing Right
Rear
Hooks
Tab
