Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 262
Confidential

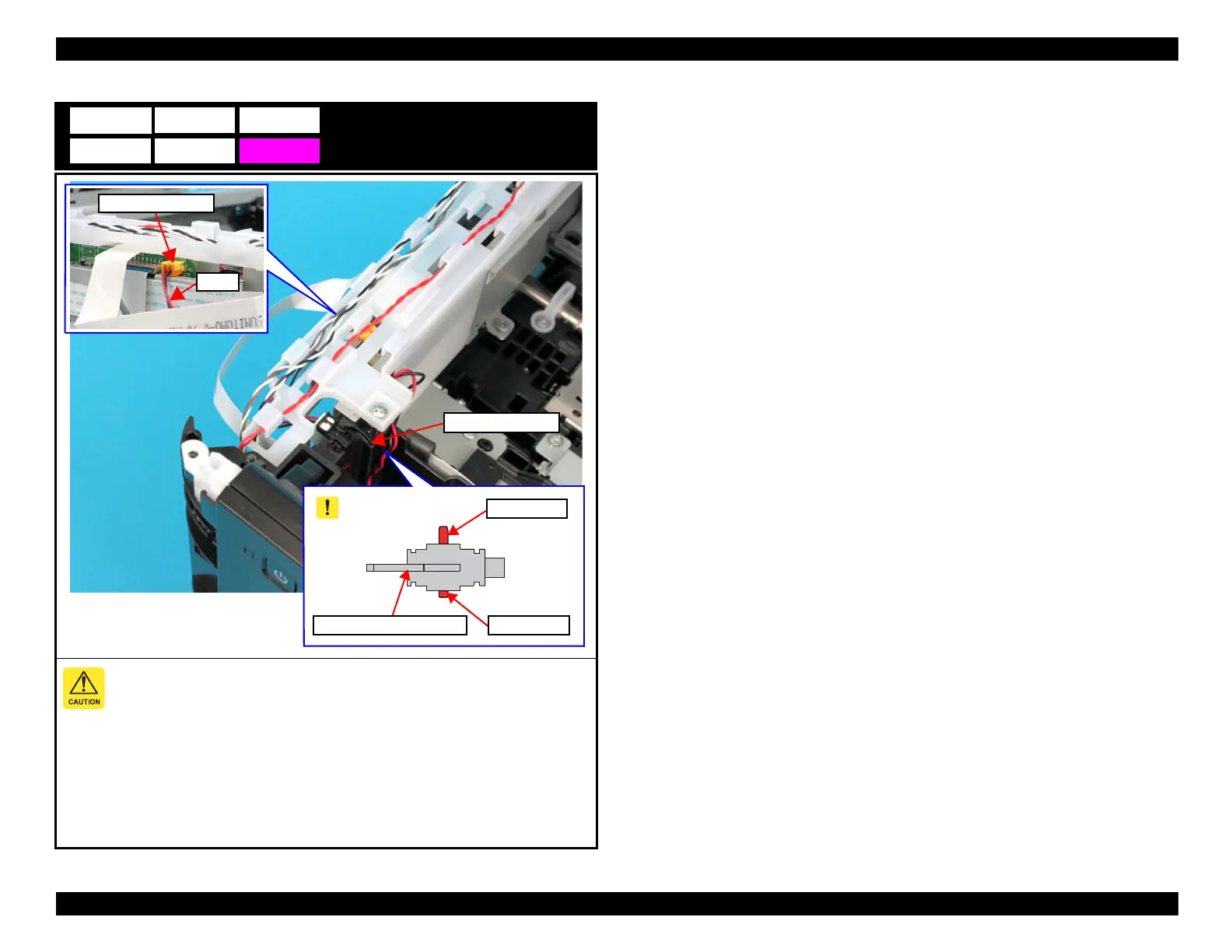

Cover Open Sensor
The length of the two hooks on mechanical contact sensor differs. See the following
and make sure to release the shorter hook first when removing the mechanical contact
sensor.
1. Disconnect the cable from the connector (CN609) on the Main Board Assy.
2. Disengage the hook by pushing up the Cover Open Sensor.
F9
Cover Open Sensor
Hook (long)
Hook (short)Mechanical Contact Sensor
Connector (CN609)
Cable
