Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 290
Confidential

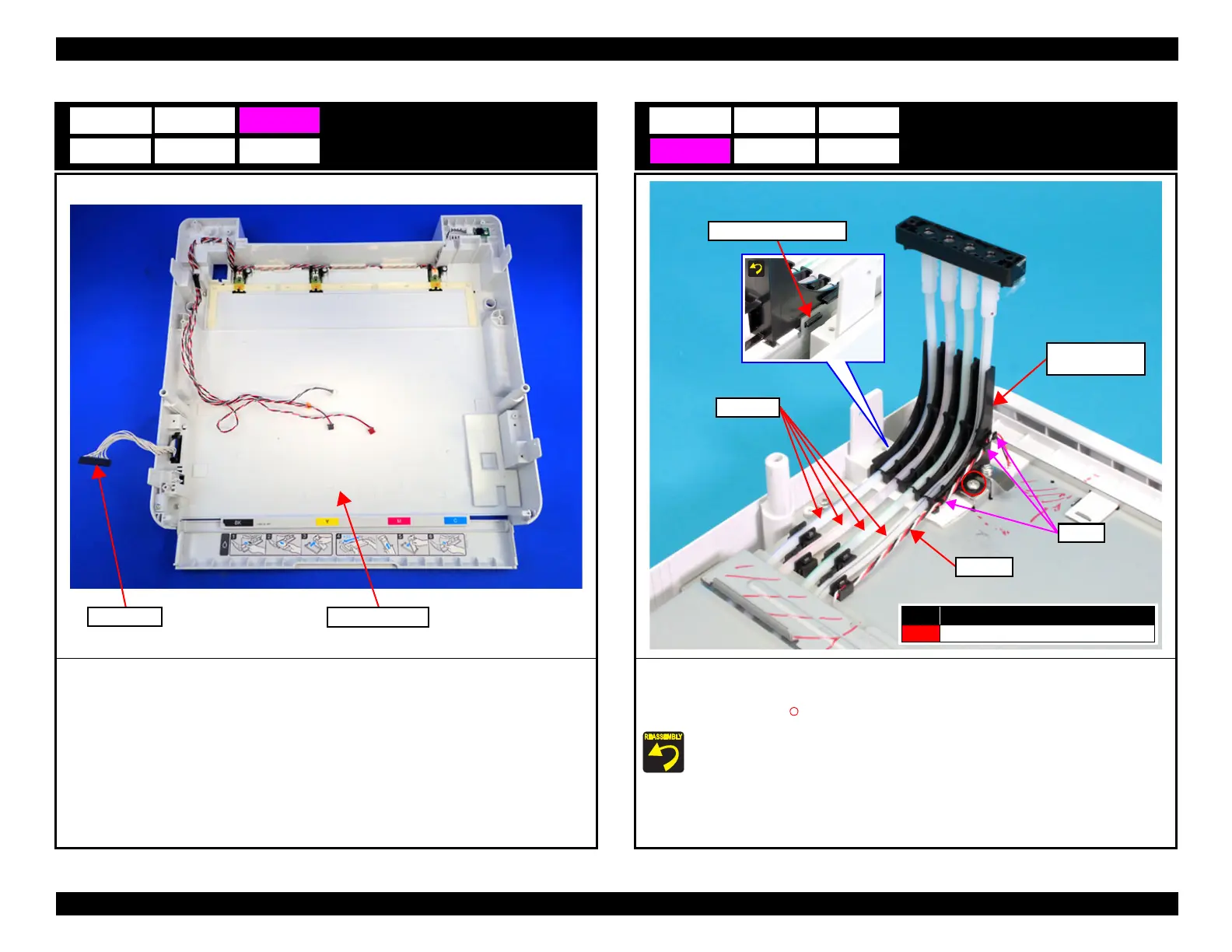

RIPS Unit Lower
1. Remove the Relay Cable from the RIPS Unit Lower.
E14
C14
Relay Cable
RIPS Unit Lower
Ink Tube Guide Holder
1. Release the cable from the three hooks on the Ink Tube Guide Holder.
2. Release the four Ink Tube from the Ink Tube Guide Holder.
3. Remove the screw (S5: ), then remove the Ink Tube Guide Holder.
Attach the tab of the Ink Tube Guide Holder to the positioning hole of the frame.
D14
F14
No. Screw Type
S5
C.B.S-TITE-SCREW-3x6-F.ZN-3C
Ink Tube Guide
Holder
Cable
Hooks
Ink Tube
Tab and positioning hole

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
