Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 289
Confidential

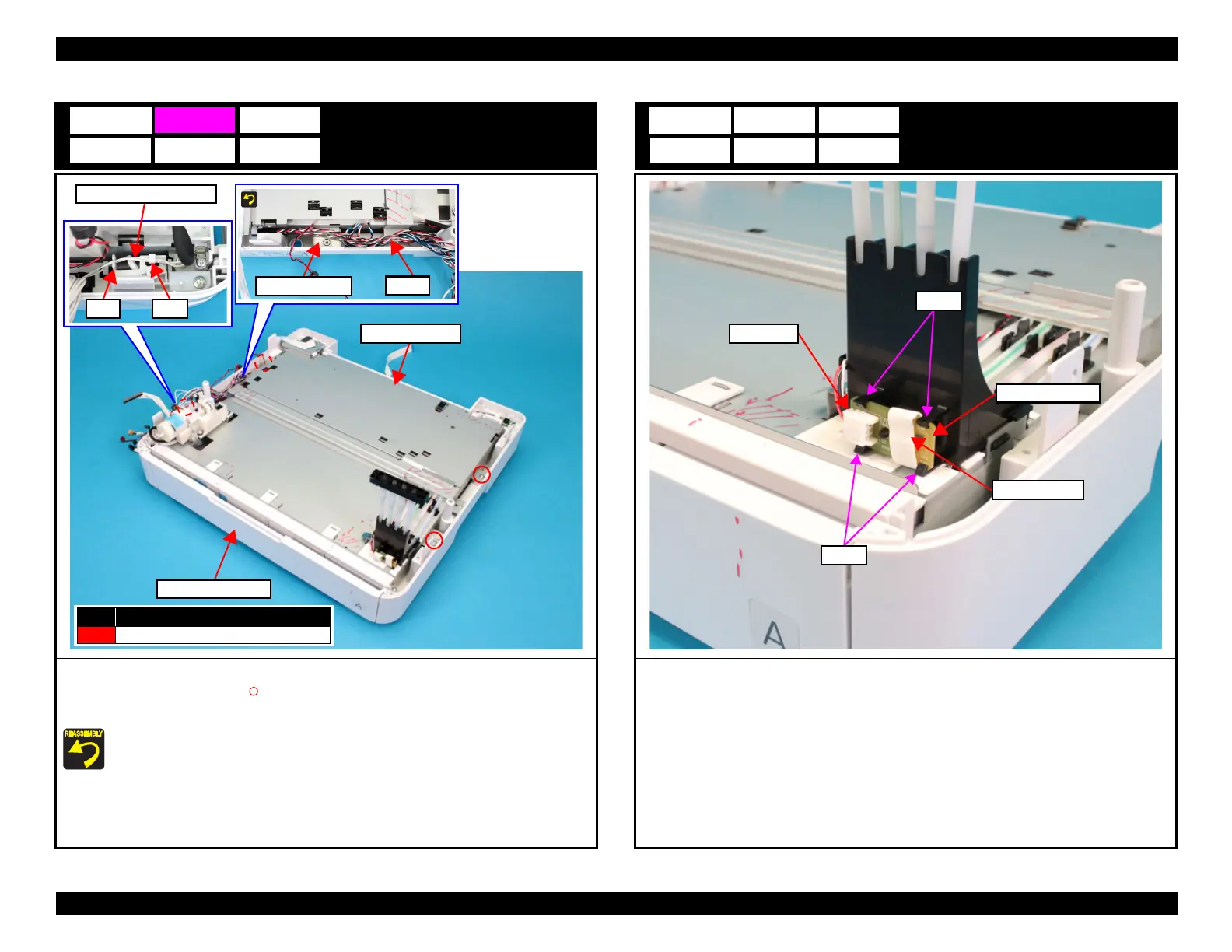

Ink Supply Unit
1. Release the cover open sensor cable from the slit and hook on the Ink Supply Housing.
2. Remove the four screws (S11: ), then remove the Ink Supply Unit from the Ink Supply
Housing.
Route the cables of the Ink Supply Unit on the frame of the Ink Supply Unit.
B13
E13
C13
No. Screw Type
S11
C.C.P-TITE-SCREW-3x8-F.ZN-3C
Hook
Slit
Cable
Ink Supply Unit
Cover open sensor cable
Ink Supply Unit
Ink Supply Housing
Ink Leak Sensor
1. Disconnect the cable from the connector.
2. Remove the Ink Porous Pad from the Ink Leak Sensor.
3. Disengage four hooks, then remove the Ink Leak Sensor.
D13
F13
Ink Porous Pad
Connector
Ink Leak Sensor
Hooks
Hooks

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
