Disassembly/assembly Disassembly/Reassembly Procedures 301
Confidential

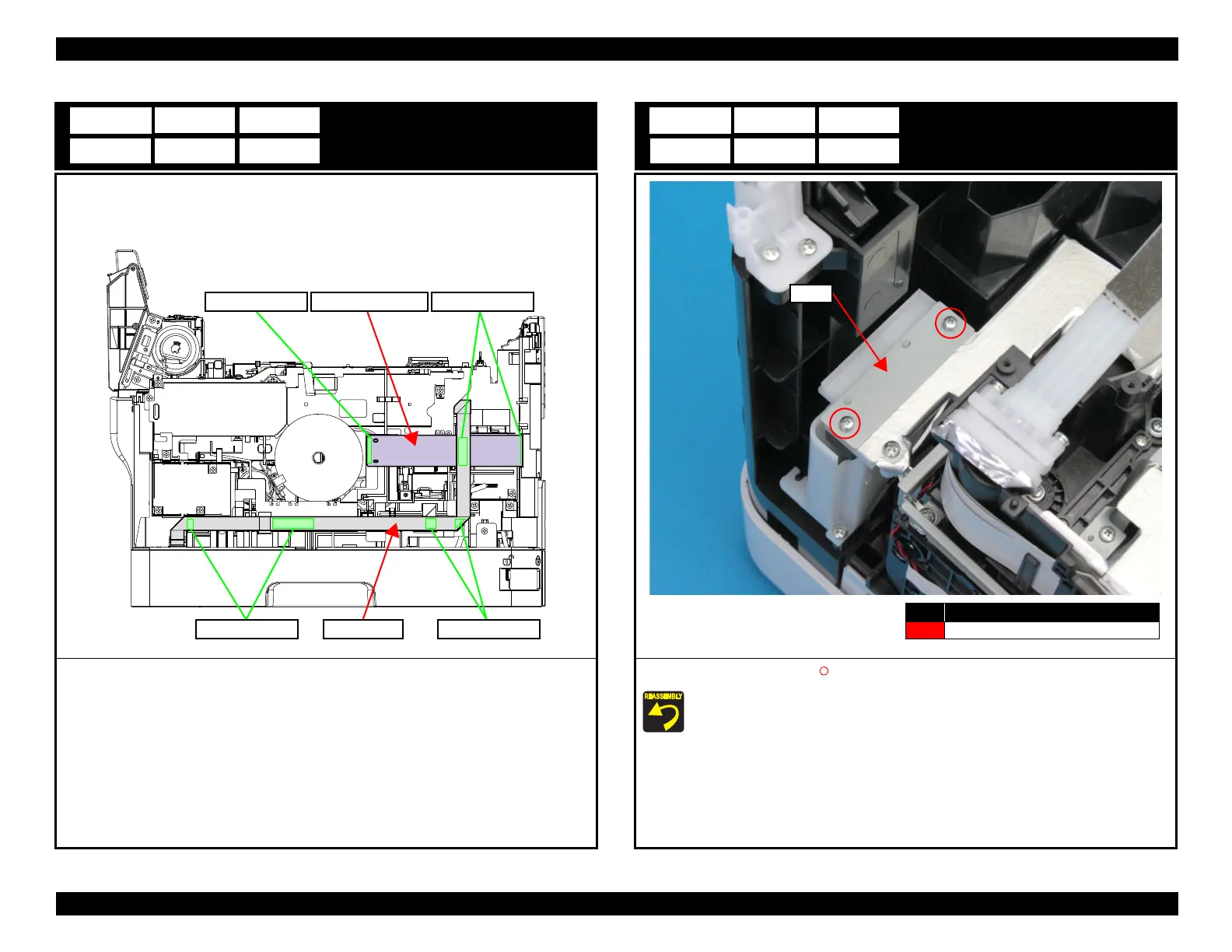

Peel off the CRCM FFC
1. Peel off the CRCM FFC.
2. Peel off the CRCR FFC Sheet.
A9 B9
D9
C9
CRCM FFC
CRCM FFC SheetDouble-sided tape Double-sided tape
Double-sided tapeDouble-sided tape
Plate
1. Remove the two screws (S6: ), and remove the Plate.
When installing the Ink Supply Tube to the RIPS Unit, make sure to tighten the
screws using a torque driver with the specified torque.
 Screw tightening torque: 0.59±0.01Nm
A10 B10
D10
C10
Plate
No. Screw Type
S6
C.B.SCREW-2.6X18-F.ZN-3C
