Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 302
Confidential

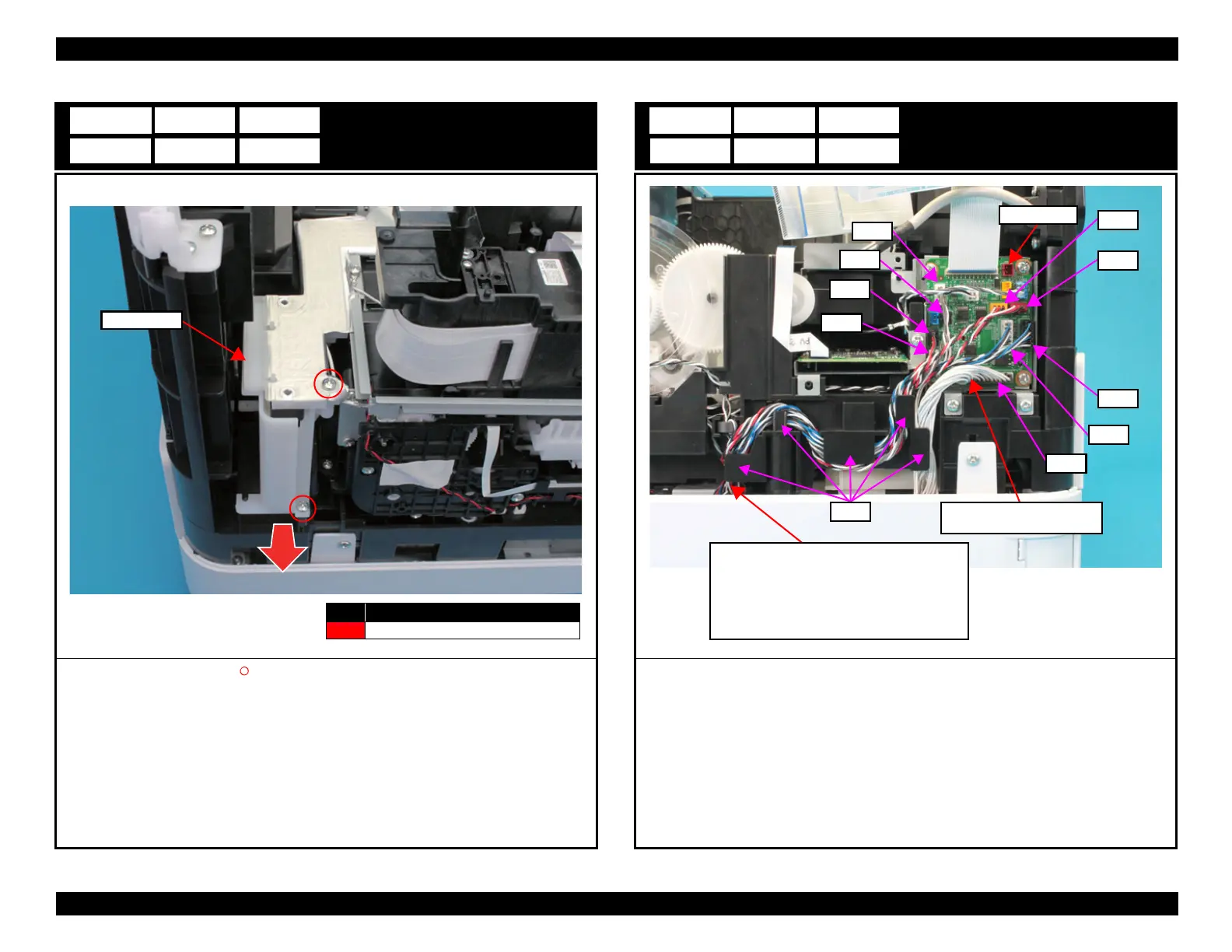

Guide Cover
1. Remove the two screws (S4: ), and remove the Guide Cover in the direction of the arrow.
A11 B11
D11
C11
Guide Cover
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
RIPS Unit
1. Disconnect the cables from the connectors (CN2, CN10, CN11, CN12, CN22, CN30,
CN31, CN54, CN55) on the Relay Board.
2. Release the cables from the five tabs on the Frame Base.
A12 B12
D12
C12
CN30
CN31
CN54
CN55
CN2
CN10
CN11
CN12
CN22
Relay Board
Tabs
Drawer Connector (CN2)
Cover Open Sensor (CN22)
Ink End Sensor (C/M) (CN30)
Ink End Sensor (Bk/Y) (CN31)
Ink Leak Sensor 1 (CN11)
Ink Leak Sensor 2 (CN12)
Ink Leak Sensor 3 (CN54)
Ink Leak Sensor 4 (CN55)
Temperature and Humidity Sensor(CN10)

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
