Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 303
Confidential
RIPS Unit

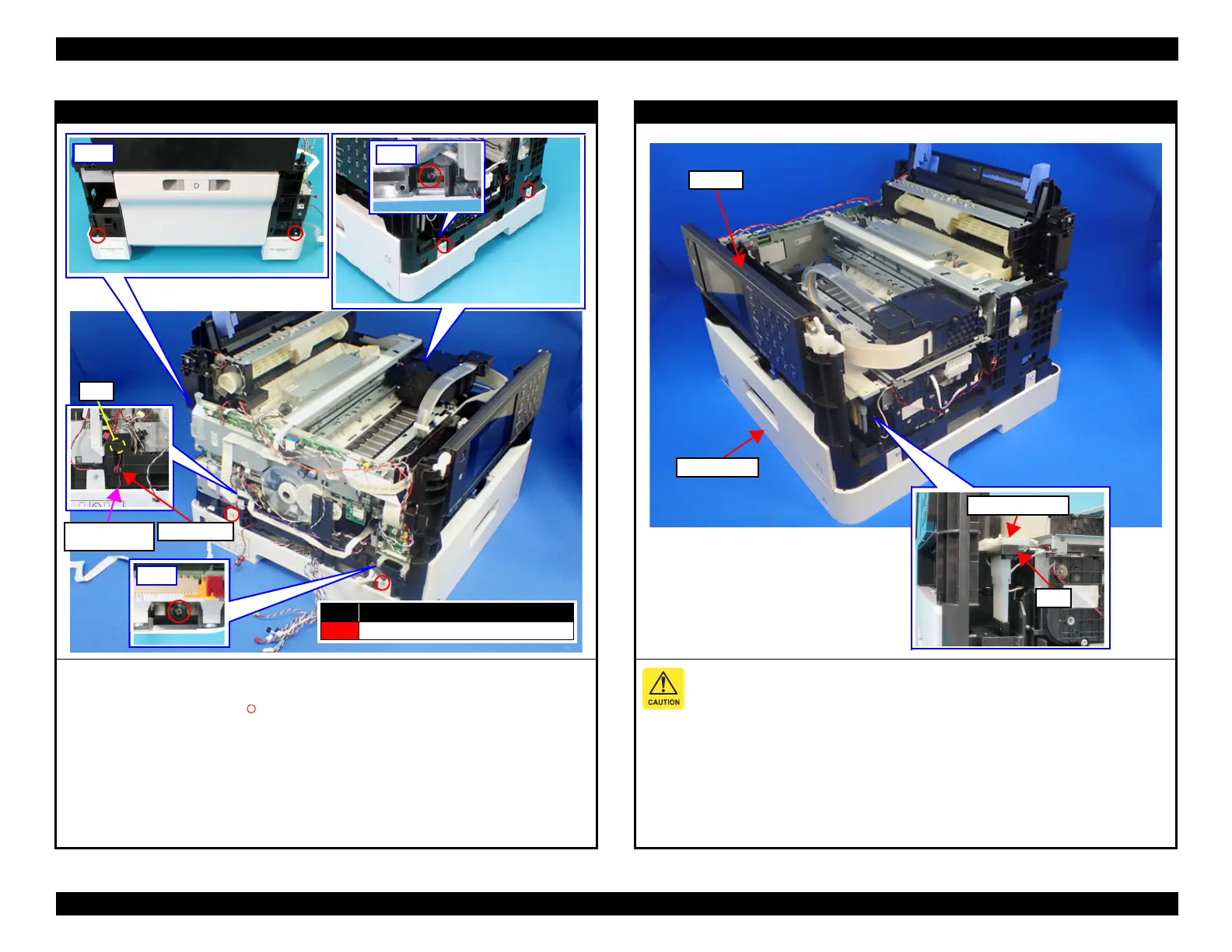

3. Pull the Decompression Pump Cable out from the hole of the Frame Base, and release the
ferrite core of the decompression pump cable from the Frame Base.
4. Remove the eight screws (S4: ) that secure the RIPS Unit.
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Top
Rear
Top
Ferrite core
Hole
Decompression
Pump cable
RIPS Unit
As ink may leak in the following steps, prepare a waste cloth or the like in advance.
5. Remove the Joint from the Ink Supply Tube.
Ink Supply Tube
Joint
RIPS Unit
Printer
