Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 306
Confidential

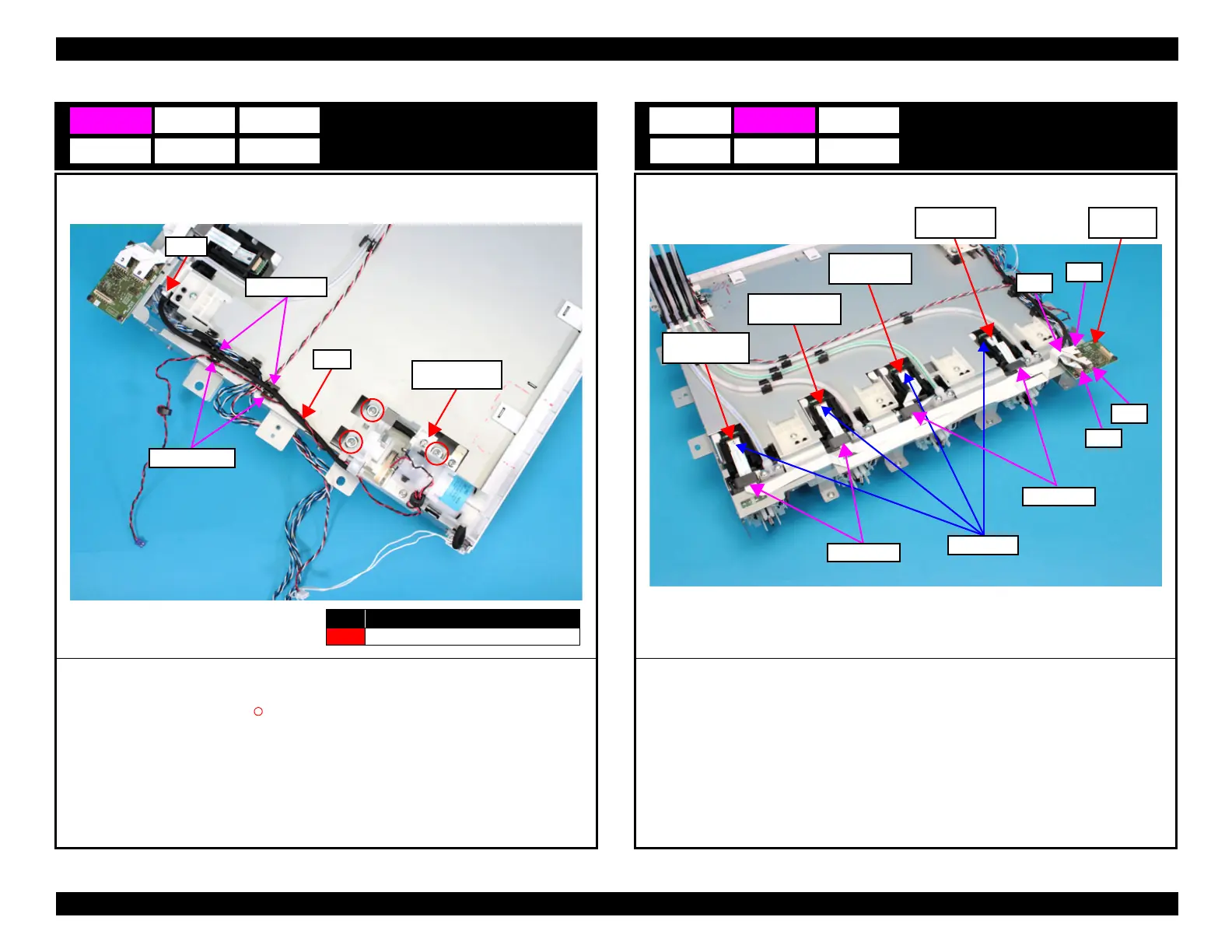

Decompression Pump Assy
1. Pull the Decompression Pump Tube from the Joint.
2. Release the decompression pump tube and decompression pump cable from the guides.
3. Remove the three screws (S15: ), then remove the Decompression Pump.
A16
No. Screw Type
S15
C.B.S-TITE(P4)SCREW,3X10,F/ZN-3C
Decompression
Pump
Tube
Joint
Guide (Tube)
Guide (Cable)
CSIC Board FFC
1. Disconnect the CSIC Board FFC from the connectors on the CSIC Board.
2. Pull the CSIC Board FFC from the ferrite core.
3. Disconnect the Ink Sensor FFC from the connectors on the Ink Sensor YMCBk.
B16
Ink Sensor
YMCBk
CSIC Board
FFC (Cyan)
CSIC Board
FFC (Magenta)
CSIC Board
FFC (Yellow)
CSIC Board
FFC (Black)
CN5
CN4
CN2
CN3
CSIC Board
Ferrite core
Ferrite core
Black: CN2 Magenta: CN3 Yellow: CN4 Cyan: CN5

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
