Disassembly/assembly Disassembly/Reassembly Procedures 307
Confidential

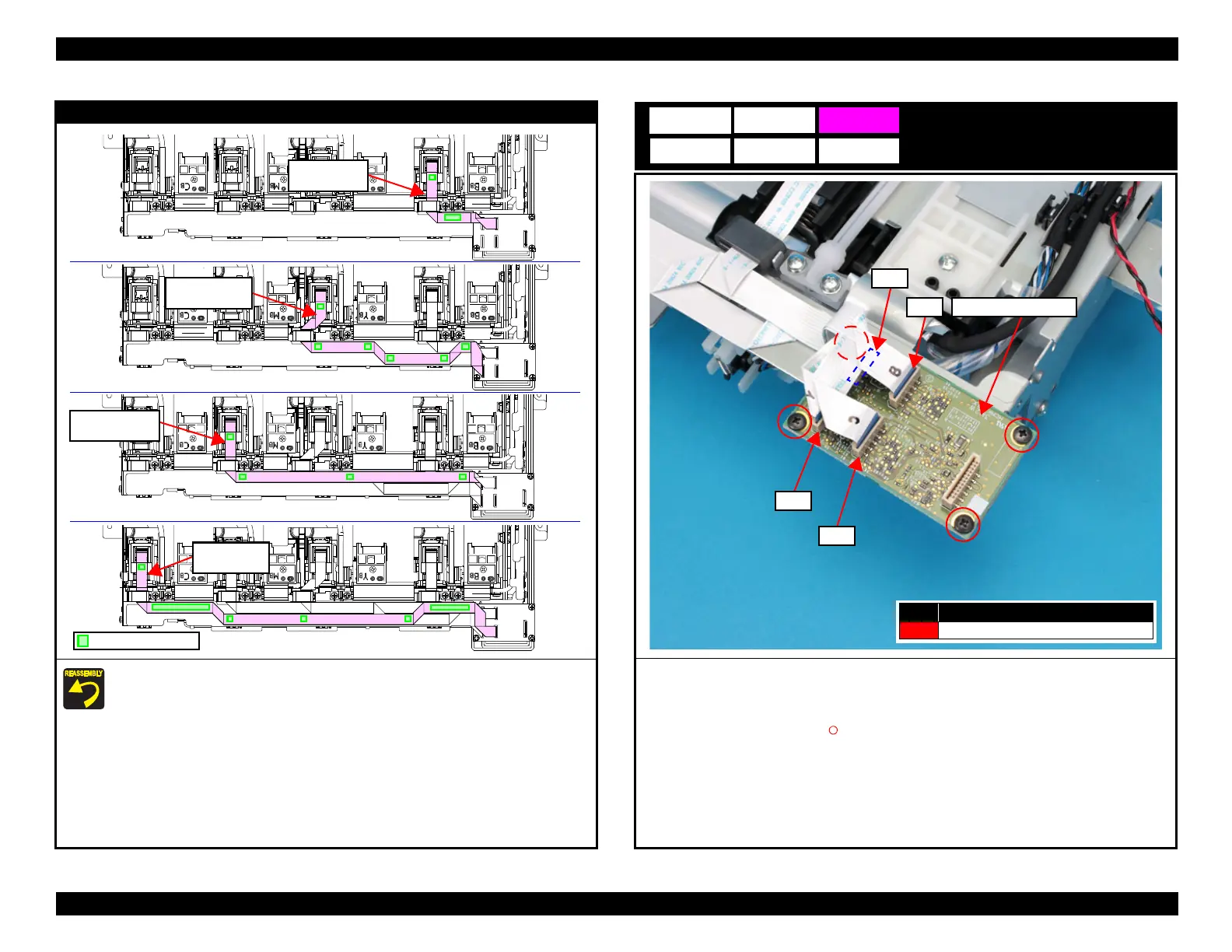

CSIC Board FFC
Secure the CSIC Board FFC on the position shown above with double-sided tape.
CSIC Board
FFC (Black)
CSIC Board
FFC (Yellow)
CSIC Board
FFC (Magenta)
CSIC Board
FFC (Cyan)
Double-sided tape
Ink Sensor YMCBk
1. Disconnect the Cartridge Detection FFC from the connector on the Ink Sensor YMCBk.
2. Remove the four screws (S12: ), then remove the Ink Sensor YMCBk.
C16
No. Screw Type
S12
C.B.S-TITE SCREW, 2.5X4,F/ZB-3C
Ink Sensor YMCBk
CN5
CN4
CN2
CN3
Black: CN2 Magenta: CN3 Yellow: CN4 Cyan: CN5
