Disassembly/assembly Disassembly/Reassembly Procedures 326
Confidential
ADF Roller Spring

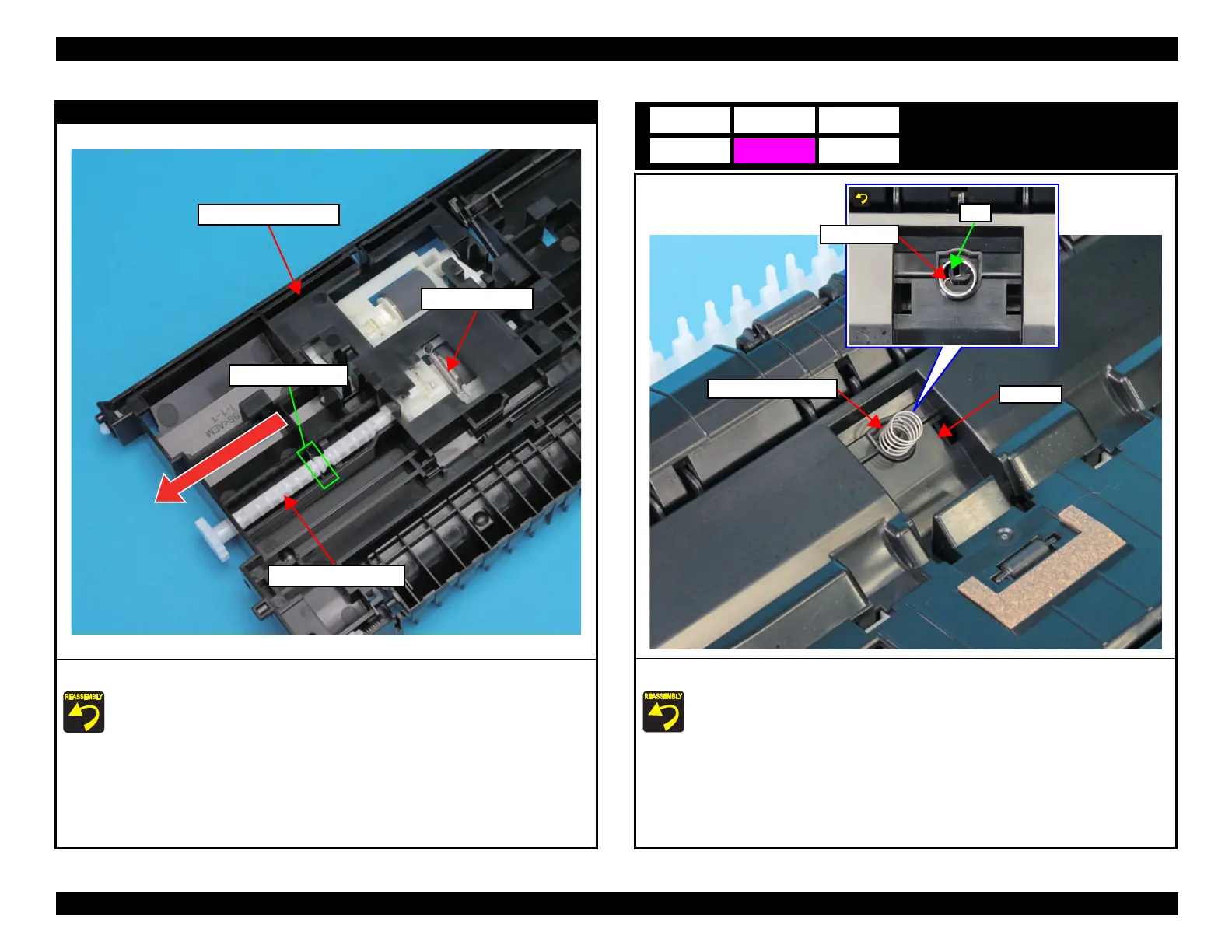

4. Pull the Paper Feed Roller Shaft in the direction of the arrow.
Set the groove the Paper Feed Roller Shaft on the bearing of the ADF Upper Paper
Guide.
5. Remove the ADF Roller Spring.
Paper Feed Roller Shaft
Groove and bearing
ADF Roller Spring
ADF Upper Paper Guide
ADF Separate Spring
1. Remove the ADF Separate Spring.
Set the leg of the ADF Separate Spring under the tab on the ADF Base.
E10
ADF Base
Tab
ADF Separate Spring
Leg of spring
