EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 327
Confidential
LD Frame Assy

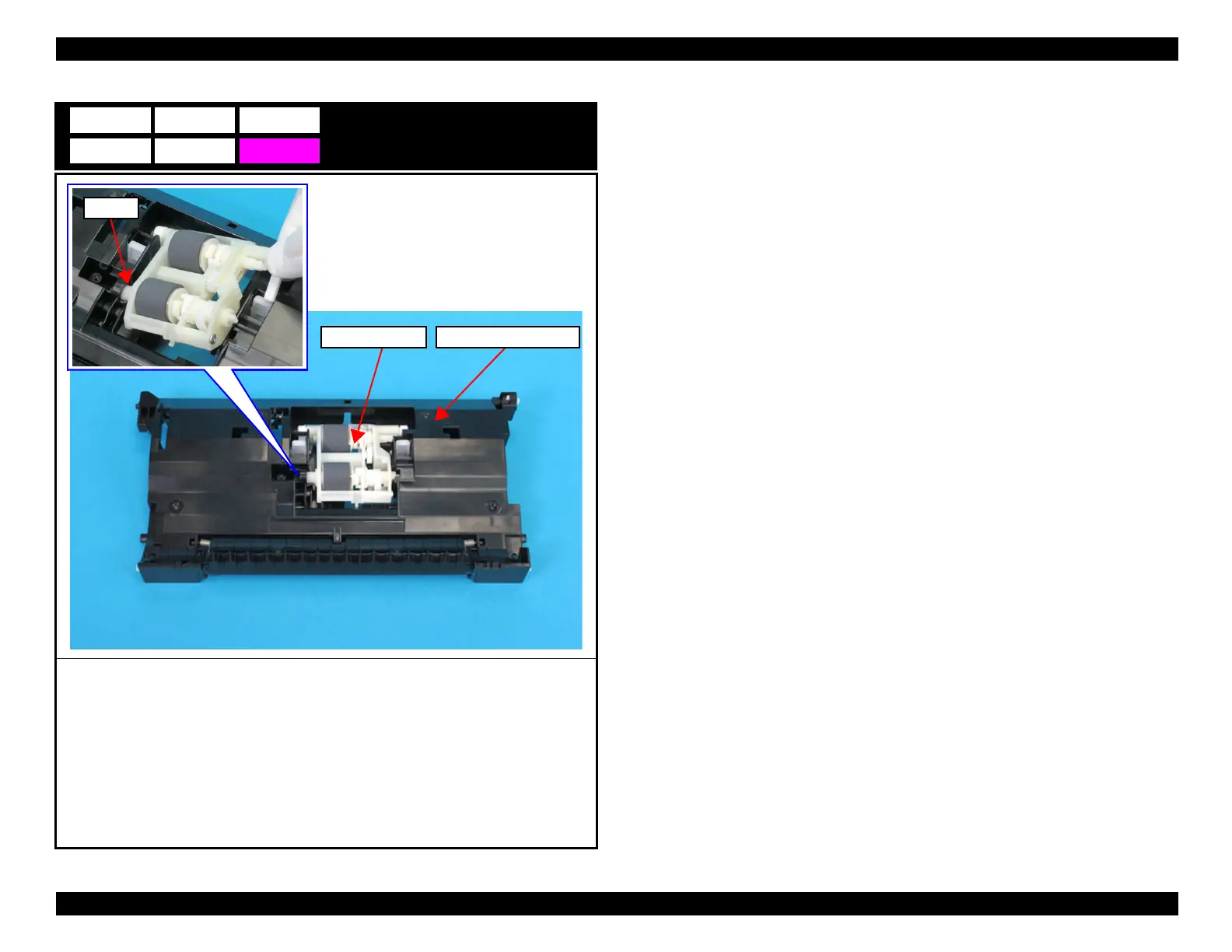

1. Lift the LD Frame Assy to release the stopper of the LD Frame Assy from the ADF Upper
Paper Guide, then remove the LD Frame Assy.
F10
LD Frame Assy
Stopper
ADF Upper Paper Guide
