Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 338
Confidential

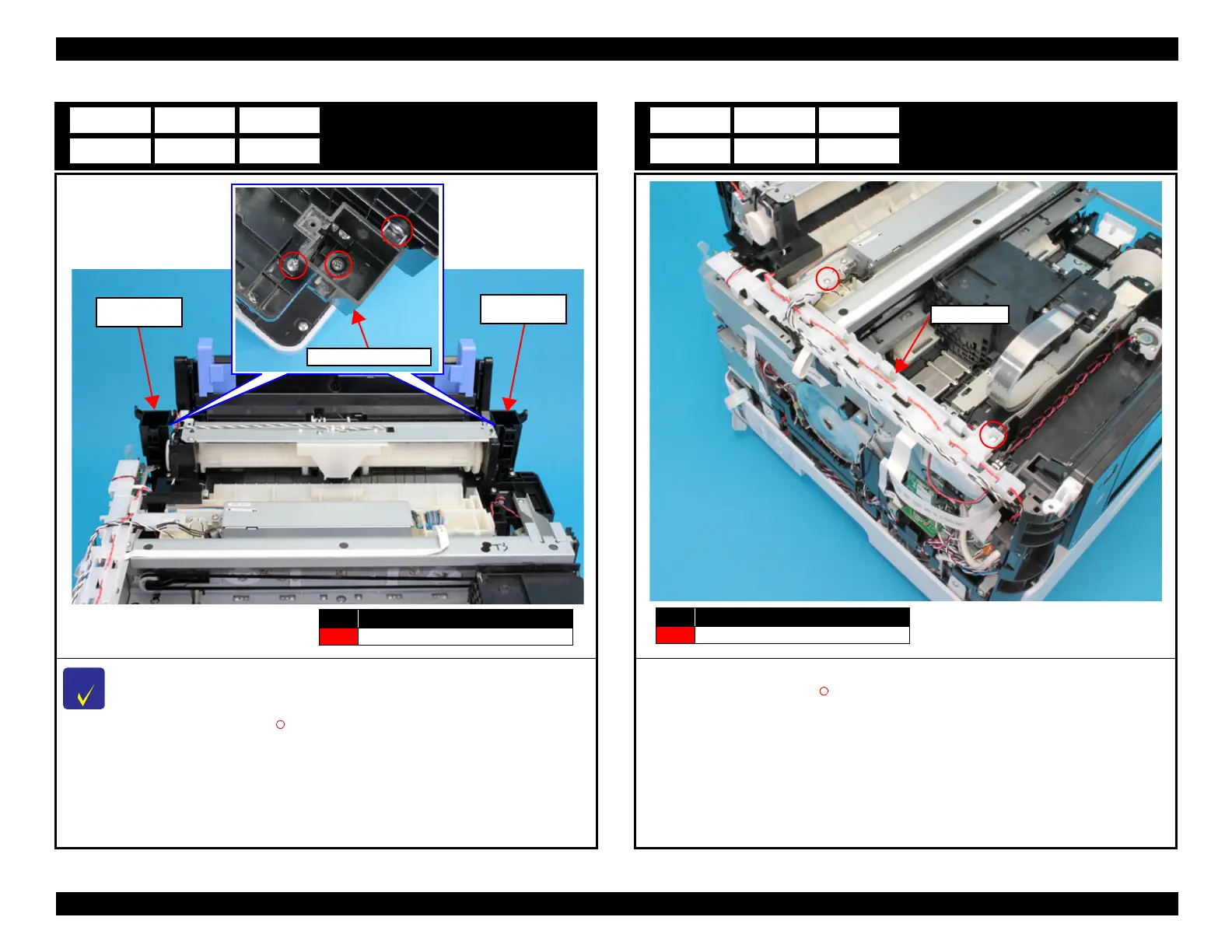

Hinge Lower Cover
C H E C K
P O I N T
When removing the Main Board Assy on the way to the target part, remove the Hinge
Assy (Left) only.
1. Remove the each three screws (S4: ), and remove the two Hinge Lower Cover.
F9
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Hinge Lower
Cover (Right)
Hinge Lower
Cover (Left)
Hinge Lower Cover
Cable Guide
1. Release the all cable from the Cable Guide.
2. Remove the two screws (S4: ), and remove the Cable Guide.
F10
Cable Guide
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
