Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 339
Confidential

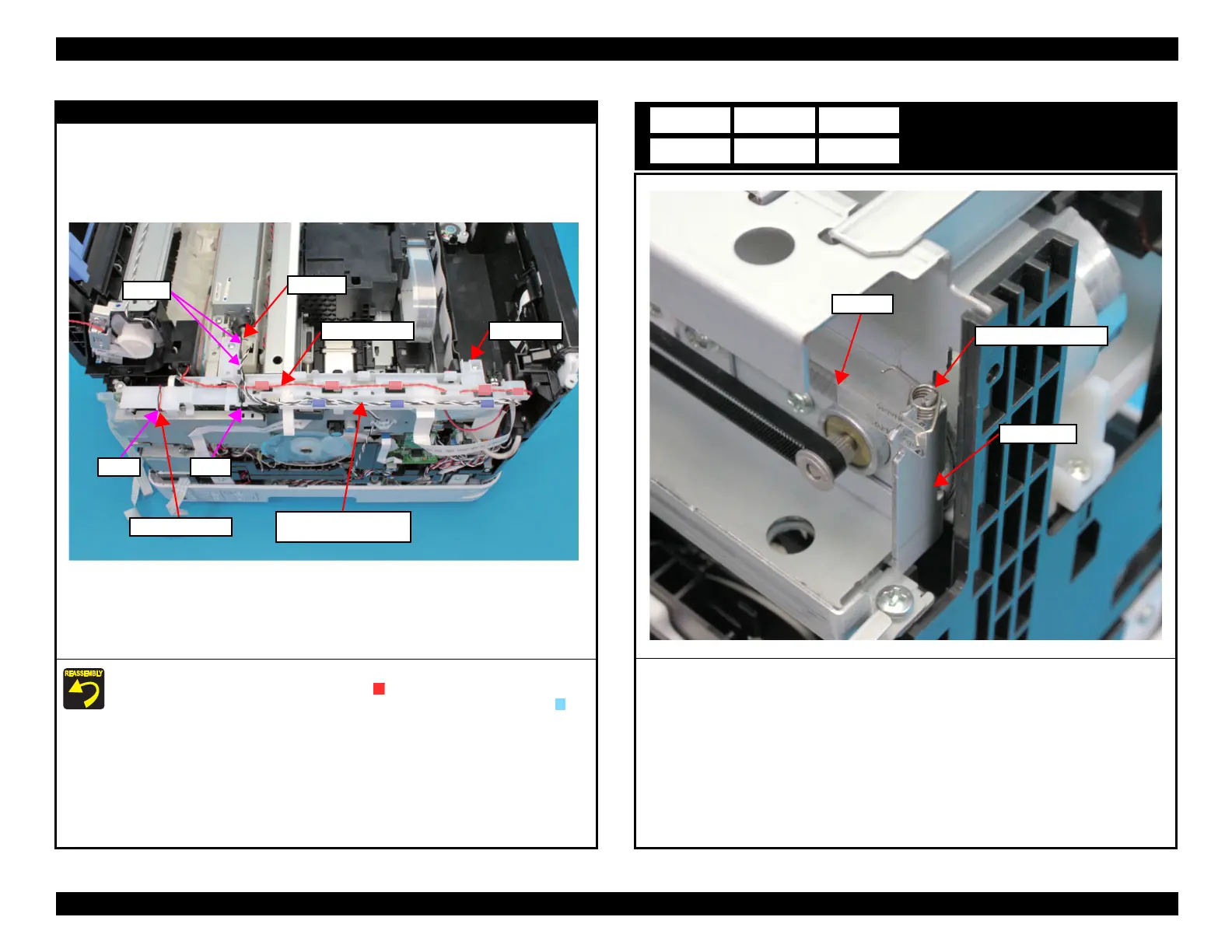

Cable Guide
 Route the PS cable through the two guides and hook on the Cable Guide.
 Route the solenoid cable through the five hooks ( ) on the Cable Guide.
 Route the rear ASF sensor cable and photo interrupter cable through the three hooks ( ) on
the Cable Guide.
 Route the ASF motor cable through the guide on the Cable Guide.
PS Cable
Rear ASF sensor cable/
Photo interrupter cable
ASF motor cable
Guides
HookGuide
Solenoid cable
Cable Guide
Extension Spring 11.11
1. Remove the Extension Spring 11.11 from the CR Scale.
2. Remove the Extension Spring 11.11 from the Main Frame.
F11
Extension Spring 11.11
CR Scale
Main Frame
