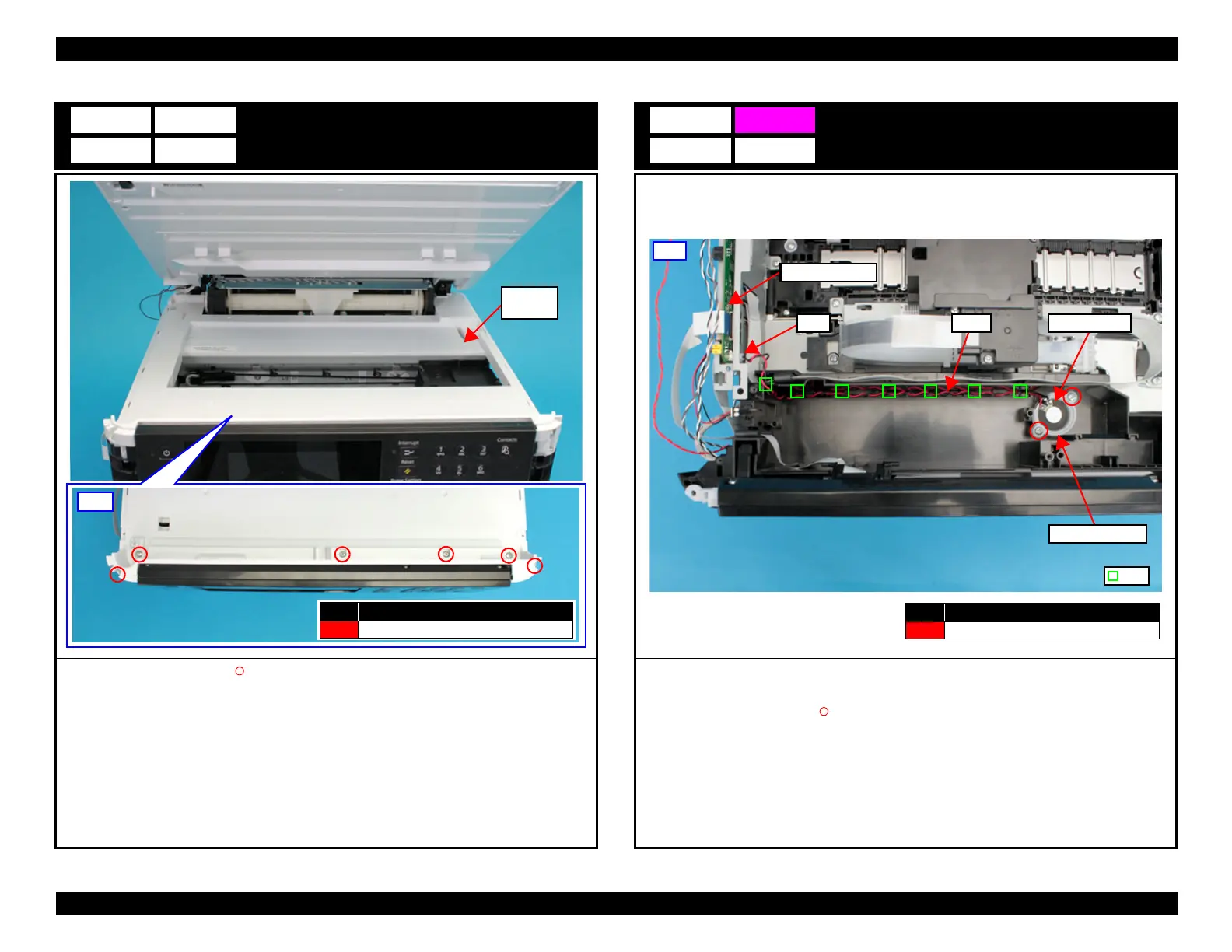

Housing Upper
1. Remove the six screws (S4: ), then remove the Housing Upper.
B6
C6
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Top
Housing
Upper
Speaker Assy
1. Disconnect the cable from the connector (CN3) on the Main Board Assy.
2. Release the cable from seven slits on the Frame Base.
3. Remove the two screws (S4: ), then remove the Speaker Holder.
4. Remove the Speaker Assy.
B7
Speaker Assy
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Speaker Holder
CN3
Top
Main Board Assy
Cable
Slit
