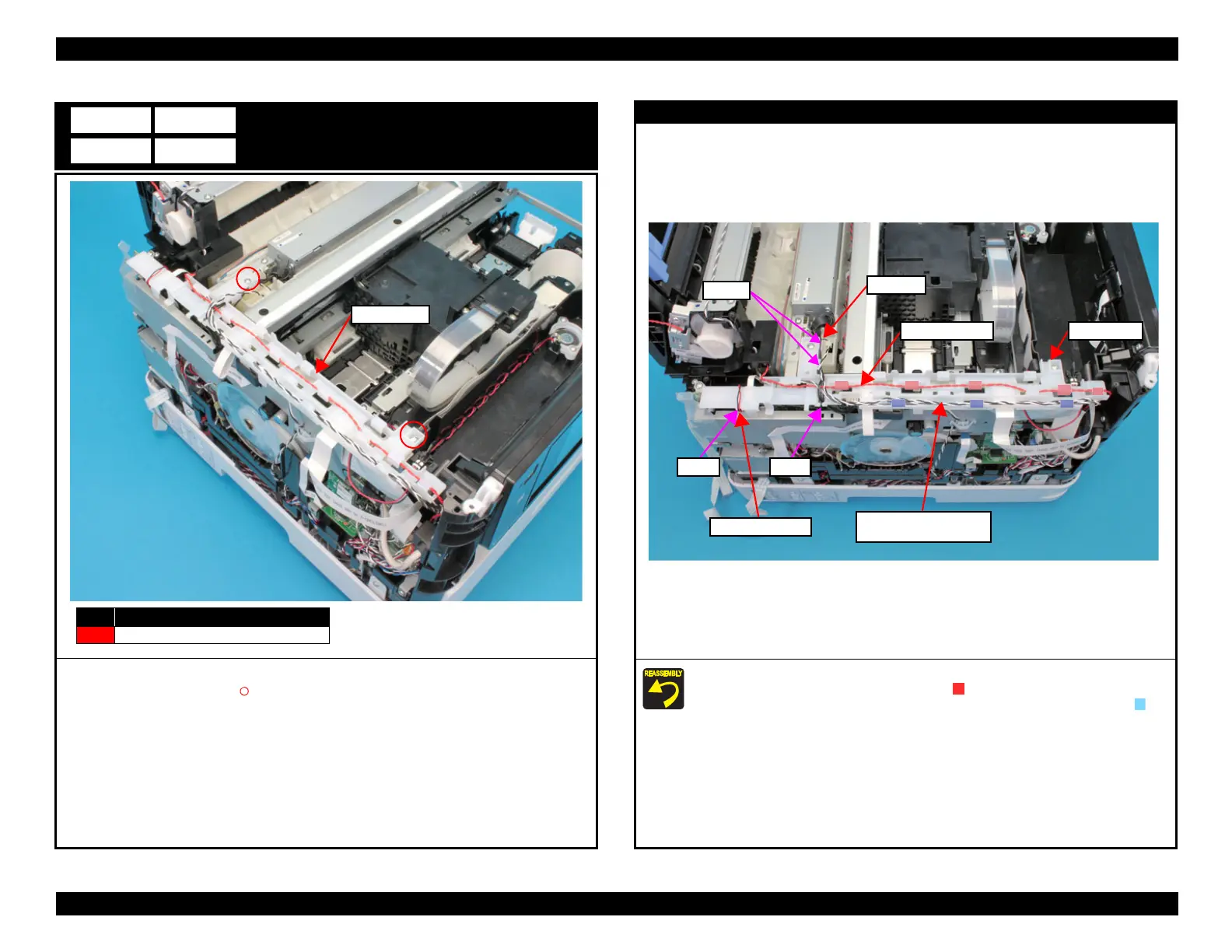

Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 352
Confidential
Cable Guide
1. Release the all cable from the Cable Guide.
2. Remove the two screws (S4: ), and remove the Cable Guide.
C7
Cable Guide
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Cable Guide
 Route the PS cable through the two guides and hook on the Cable Guide.
 Route the solenoid cable through the five hooks ( ) on the Cable Guide.
 Route the rear ASF sensor cable and photo interrupter cable through the three hooks ( ) on
the Cable Guide.
 Route the ASF motor cable through the guide on the Cable Guide.
PS Cable
Rear ASF sensor cable/
Photo interrupter cable
ASF motor cable
Guides
HookGuide
Solenoid cable
Cable Guide
