ADF/SCN Unit
C H E C K
P O I N T
When disconnecting the CISM FFC (CN601) from this connector, make sure to
unlock the connector lock beforehand.

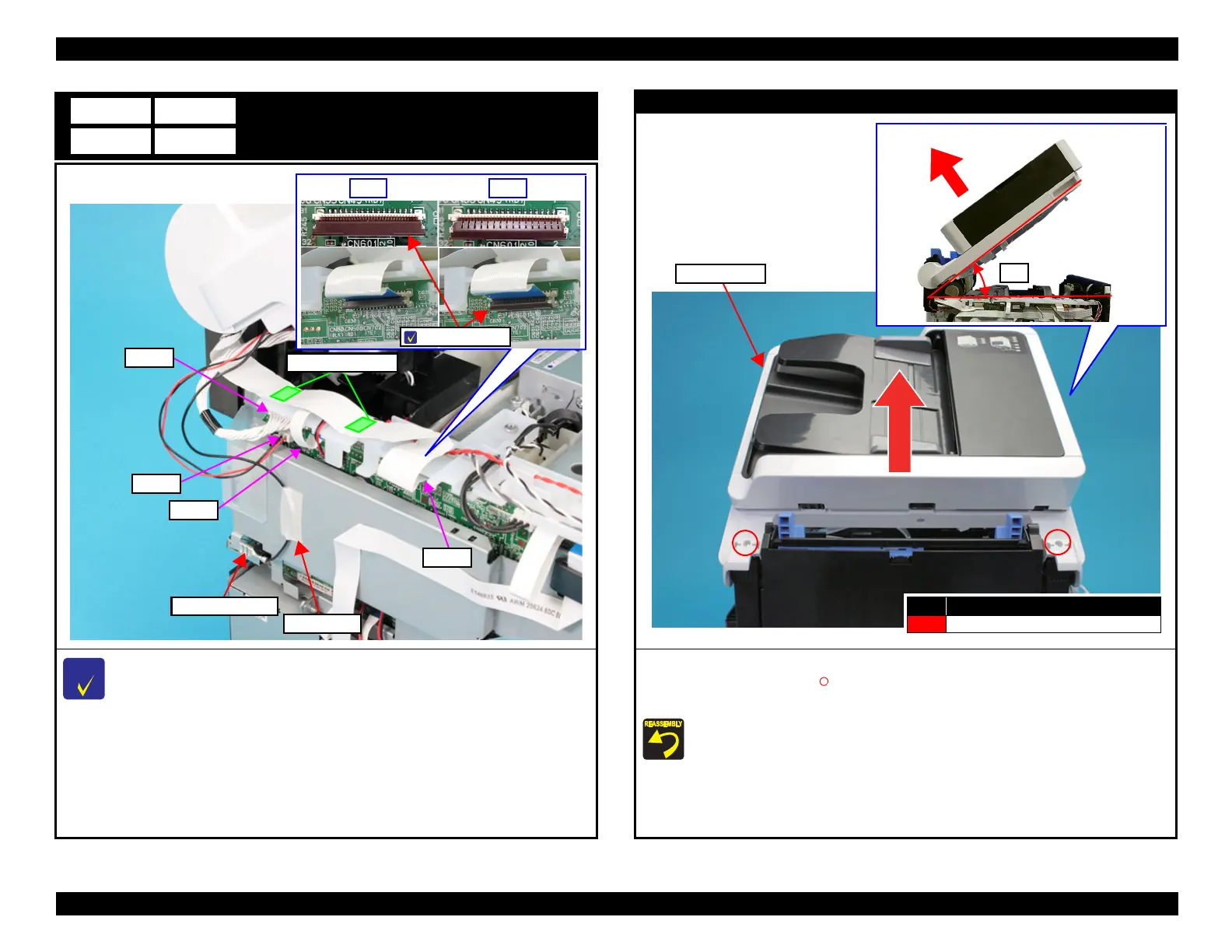

1. Disconnect the cables and FFCs from following connectors on the Main Board.
2. Peel off the acetate tape, then remove the grounding cable.
C8
Grounding cable
Acetate tape
Double-sided tape
CN801
CN612
CN606
CN601
Open Close
Connector Lock
•CN601 • CN606 •CN612 • CN801
ADF/SCN Unit
3. Open the ADF/SCN Unit.
4. Remove the two screws (S4: ), then remove the ADF/SCN Unit in the direction of the
arrow.
 Before screwing the ADF/SCN Unit, make sure the hinges are properly attached in place.
 If the ADF/SCN Unit is opened when the hinges are NOT secured, the unit may be damaged.
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
ADF/SCN Unit
45 °
