EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 355
Confidential

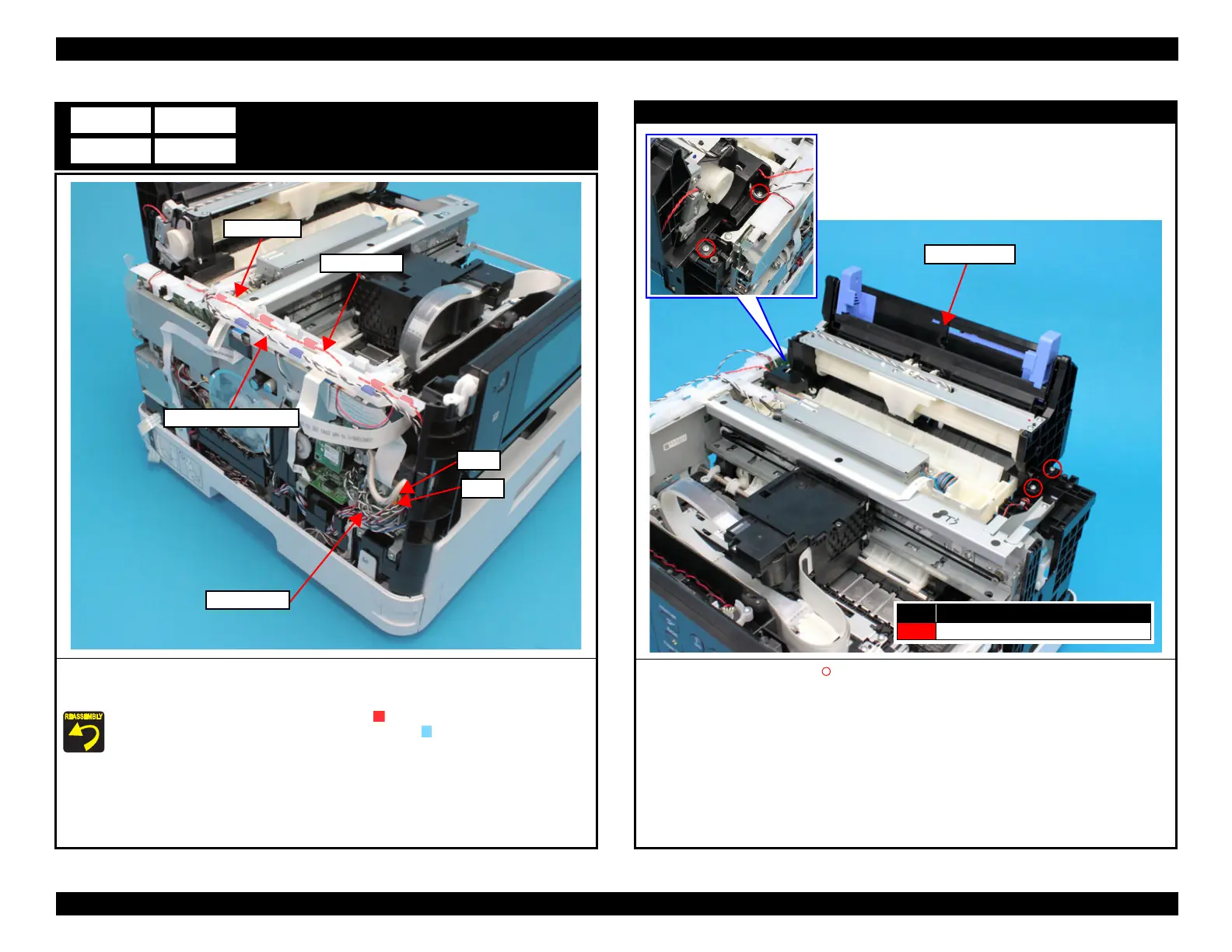

Rear ASF Assy
1. Disconnect the cables from the connectors (CN51, CN56) on the Relay Board.
2. Release the solenoid cable and photo interrupter cable from the Cable Guide.
 Route the solenoid cable through the five hooks ( ) on the Cable Guide.
 Route the photo interrupter cable through the three hooks ( ) on the Cable Guide.
C11
Solenoid cable
Photo interrupter cable
Cable Guide
CN51
CN56
Relay Board
Rear ASF Assy
3. Remove the four screws (S4: ), and remove the Rear ASF Assy.
Rear ASF Assy
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
