Disassembly/assembly Disassembly/Reassembly Procedures 356
Confidential

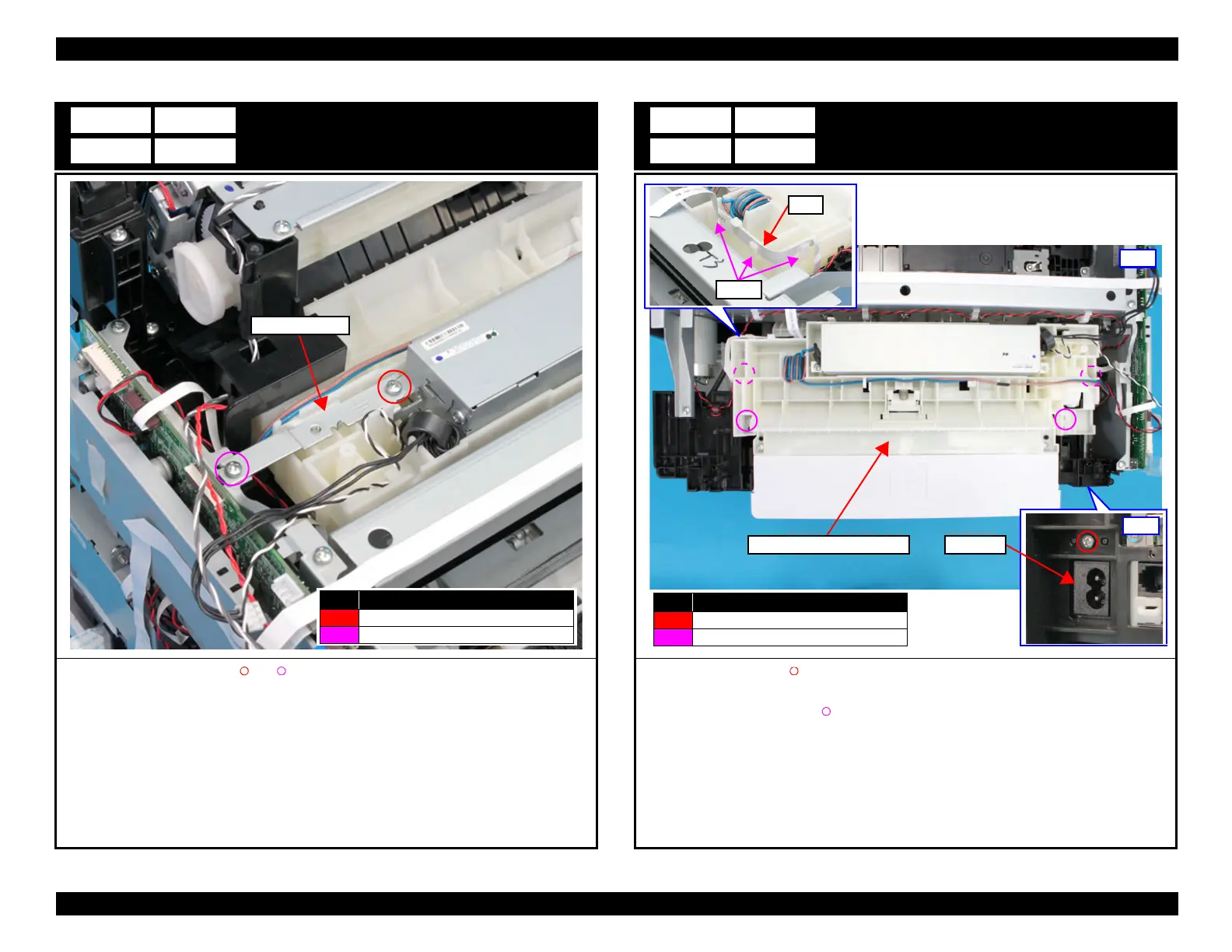

PS Ground Plate
1. Remove the two screws (S4: , S5: ), then remove the PS Ground Plate.
C12
PS Ground Plate
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
S5
C.B.S-TITE-SCREW-3x6-F.ZN-3C
Rear ASF Upper Guide Assy
1. Remove the screw (S4: ) that secures the AC Inlet.
2. Release the FFC from three hooks on the Rear ASF Upper Guide Assy.
3. Remove the four screws (S4: ), then remove the Rear ASF Upper Guide Assy.
C13
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Rear
Hooks
FFC
AC Inlet
Top
Rear ASF Upper Guide Assy
