Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 366
Confidential

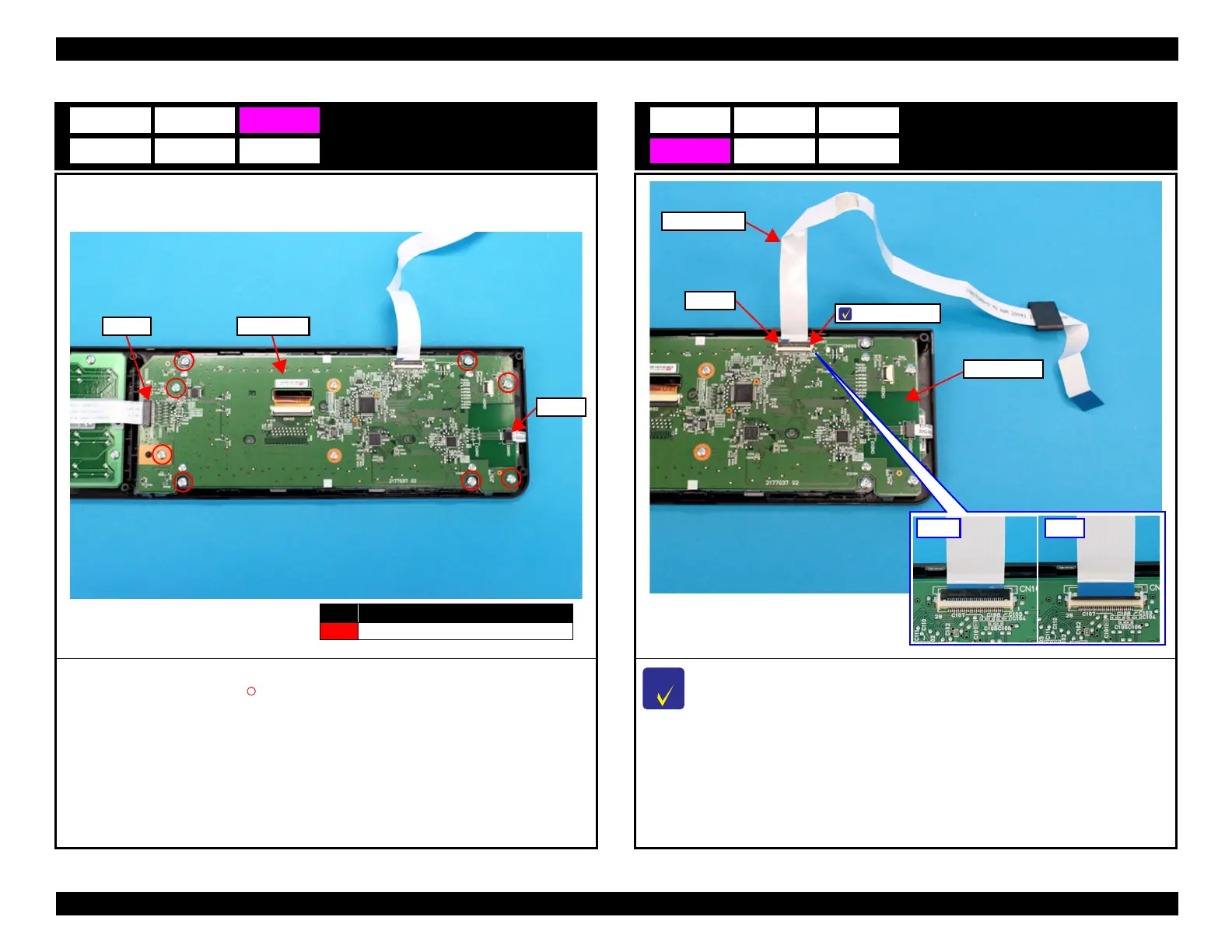

Panel Board
1. Disconnect the FFC from the connectors (CN302, CN311) on the Panel Board.
2. Remove the eight screws (S4: ), then remove the Panel Board.
C10
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Panel Board
CN302
CN311
Relay Cable (Panel to Main)
C H E C K
P O I N T
When disconnecting the FFC, make sure to unlock the connector lock beforehand.
1. Disconnect the Relay Cable from the connector (CN101) on the Panel Board.
D10
Relay Cable
CN101
Panel Board
Close
Open
Connector lock

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
