EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 367
Confidential

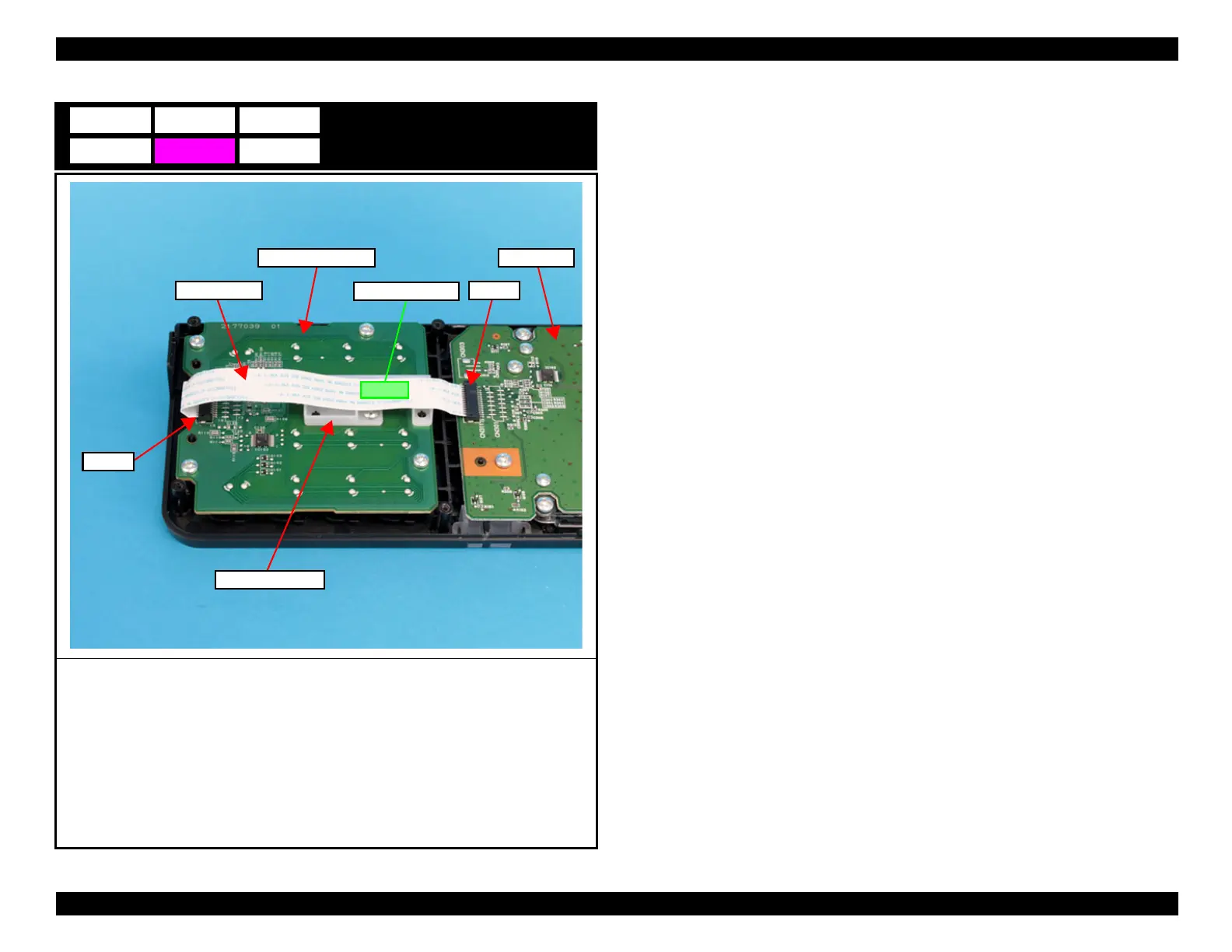

Relay Cable (Panel to Numpad)
1. Peel off the Relay Cable from the Relay Cable Cover.
2. Disconnect the Relay Cable from the connectors (CN102, CN311) on the Panel Board and
Numpad Board Assy.
E10
Numpad Board Assy
CN311
Double-sided tape
Relay Cable
Relay Cable Cover
Panel Board
CN102
