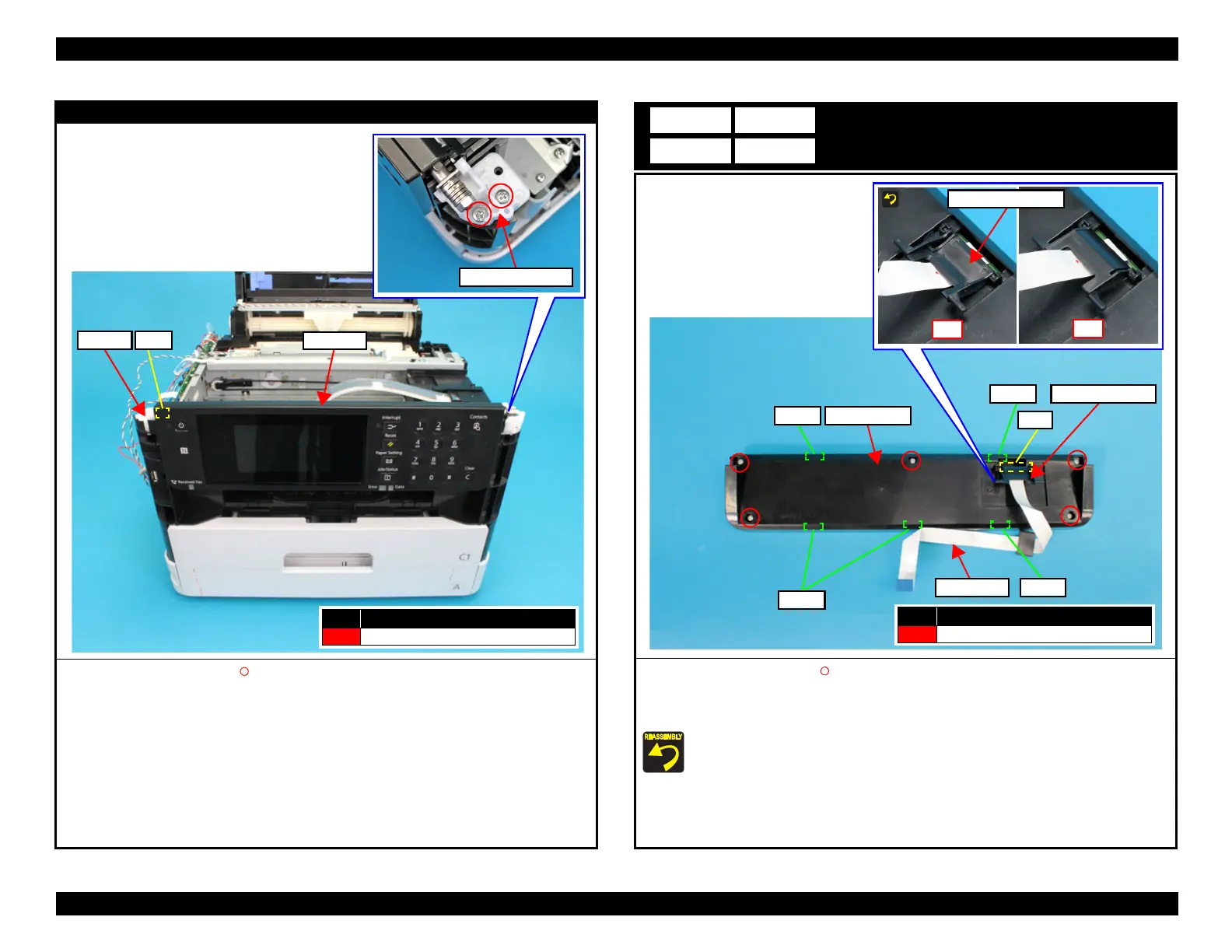

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 376
Confidential
Panel Assy
4. Remove the two screws (S4: ), then remove the Right Panel Holder.
5. Release the shaft of the Panel Assy from the bearing, then remove the Panel Assy.
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Panel Assy
Right Panel Holder
Bearing
Shaft
Panel Housing
1. Remove the five screws (S4: ) that secure the Panel Housing.
2. Disengage five hooks on the Panel Housing, then remove the Panel Housing.
3. Remove the Panel FFC Cover.
Attach the panel FFC Cover as shown above.
4. Pull the Relay Cable out from the hole of the Panel Housing.
B11
C11
Panel Housing
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Relay Cable
Hole
Hooks
Hooks
NG
OK
Panel FFC Cover
Hook Panel FFC Cover
Hook
