Head FFC Assy

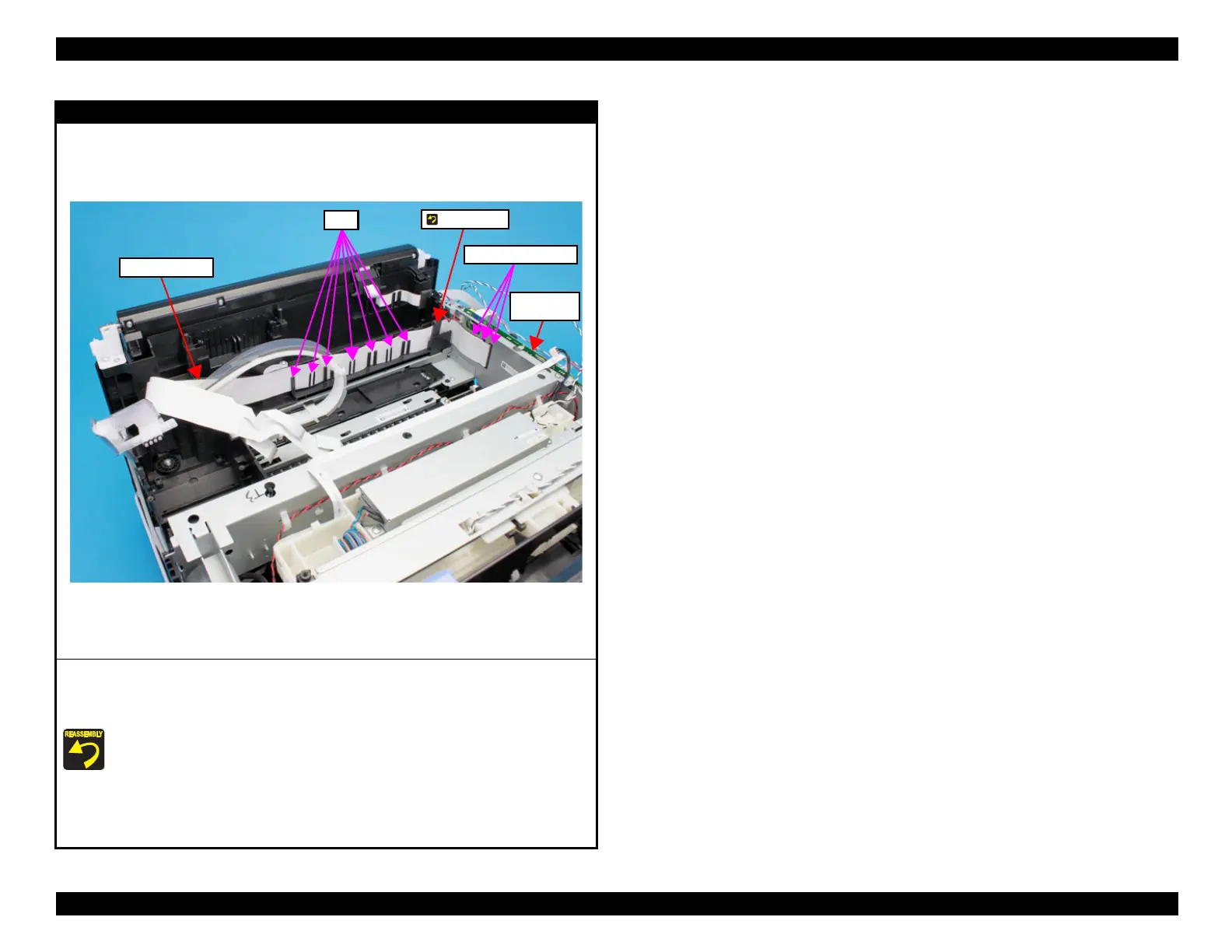

3. Release the Head FFC Assy from the seven tabs on the Frame Base.
4. Disconnect the Head FFC Assy from the connectors (CN66, CN67, CN68) on the Main
Board Assy.
Set the ferrite core of the Head FFC Assy in the point shown above.
Head FFC Assy
Ferrite core
Main Board
Assy
CN68/CN66/CN67
Tabs
