Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 415
Confidential

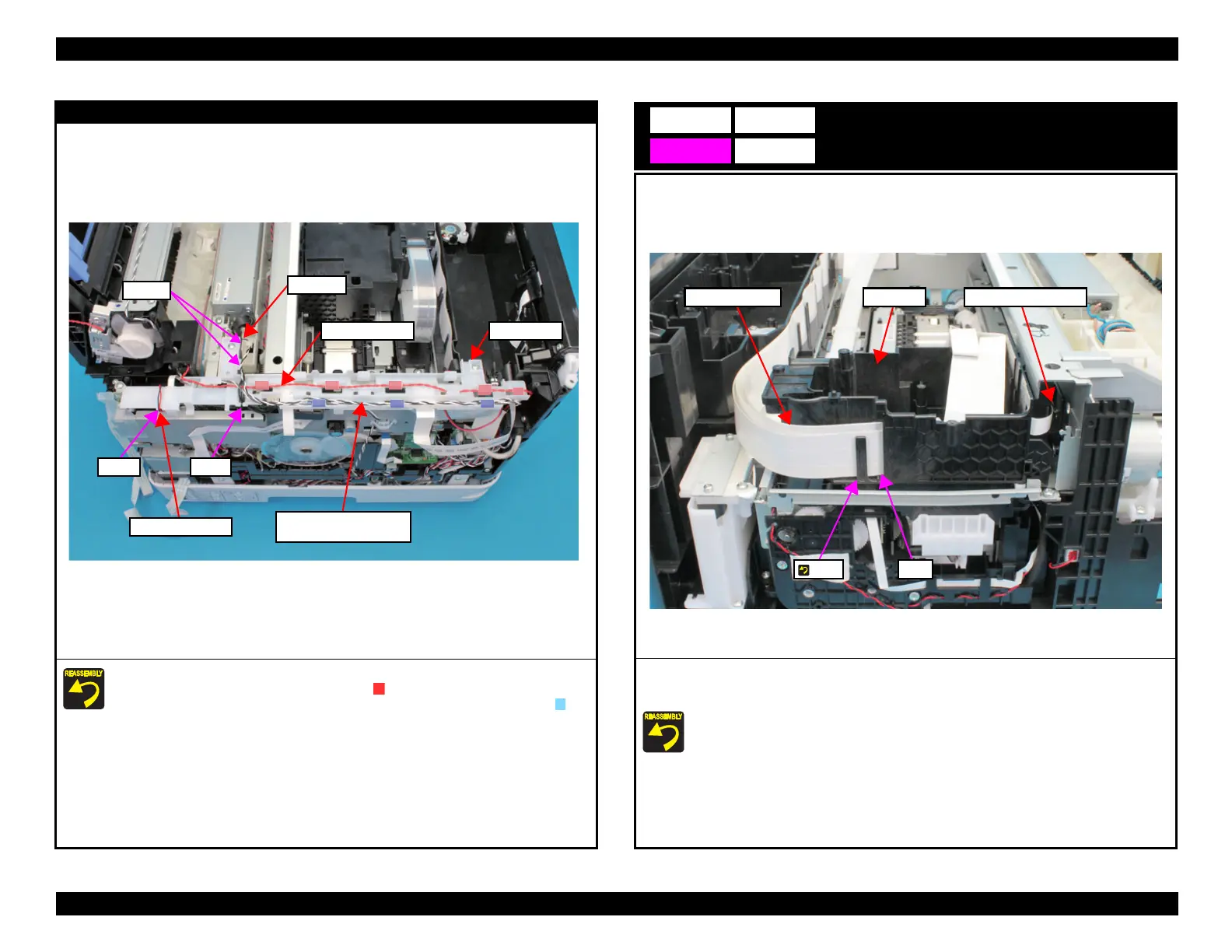

Cable Guide
 Route the PS cable through the two guides and hook on the Cable Guide.
 Route the solenoid cable through the five hooks ( ) on the Cable Guide.
 Route the rear ASF sensor cable and photo interrupter cable through the three hooks ( ) on
the Cable Guide.
 Route the ASF motor cable through the guide on the Cable Guide.
PS Cable
Rear ASF sensor cable/
Photo interrupter cable
ASF motor cable
Guides
HookGuide
Solenoid cable
Cable Guide
Head FFC Assy
1. Disconnect the Head FFC Assy from the connector on the CR Encoder Sensor.
2. Pull the Head FFC Assy out from the slit of the CR Unit.
Route the Head FFC Assy under the tab of the CR Unit.
C12
CR Encoder Sensor
CR Unit
Head FFC Assy
Slit
Tab

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
