Printhead
After ink charging, follow the instructions on the Ink leak check (p.563) to remove the
LEAK TESTER SHEET FRONT/REAR, then perform Leak Check Judgement.

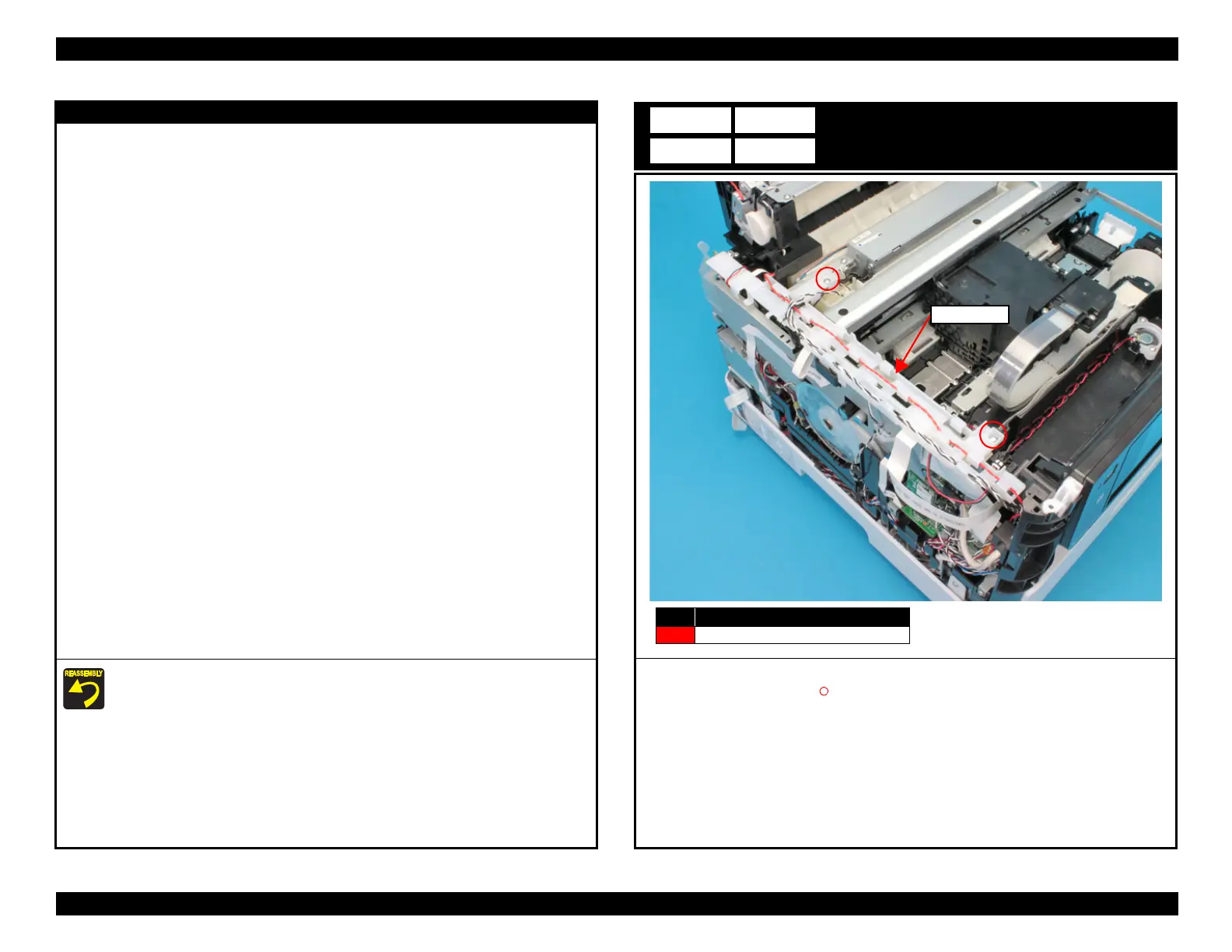

Cable Guide
1. Release the all cable from the Cable Guide.
2. Remove the two screws (S4: ), and remove the Cable Guide.
C11
Cable Guide
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
