Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 438
Confidential
CR Unit

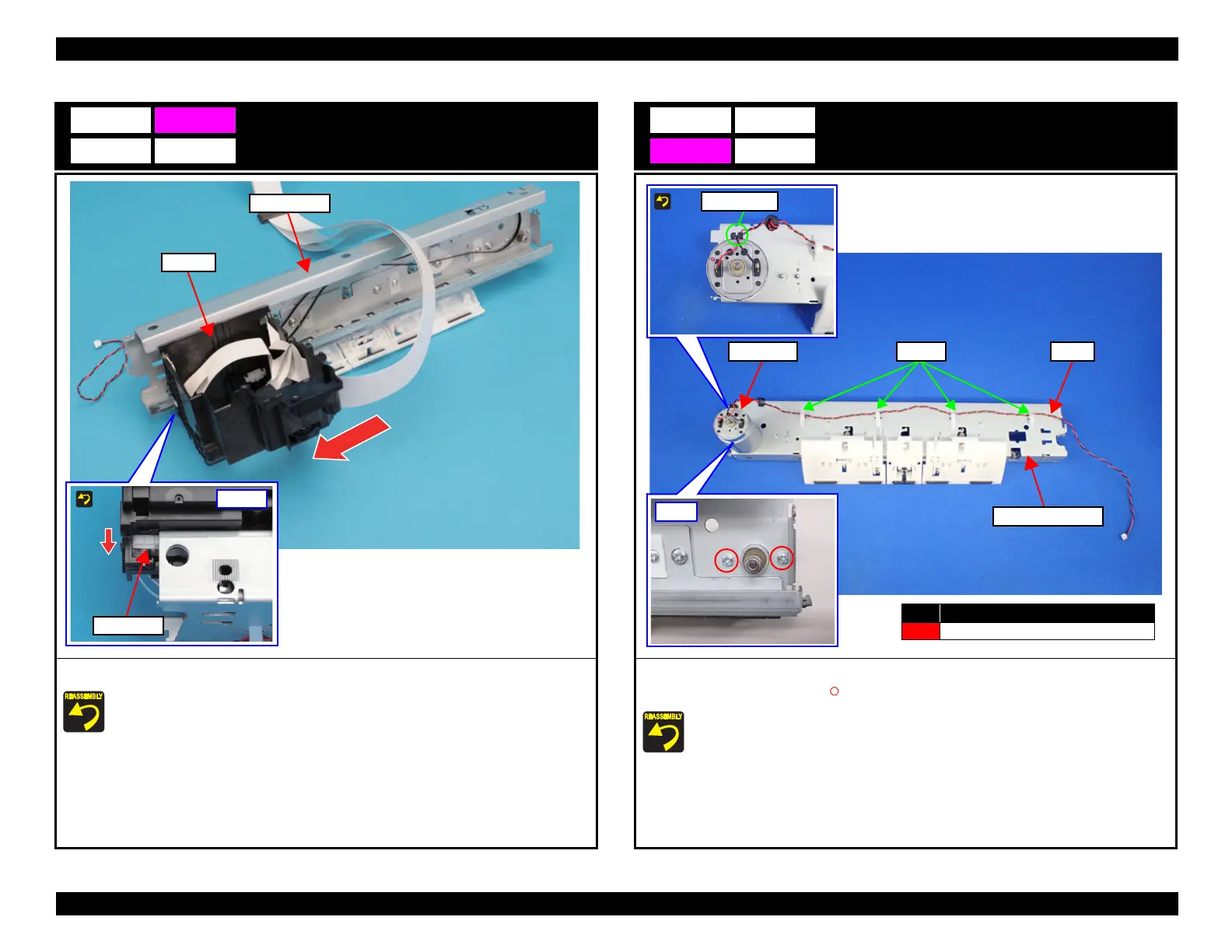

1. Slide the CR Unit in the direction of the arrow to remove it from the Main Frame.
Slide the CR Unit to the groove on the Main Frame while pressing the APG Slider in
the direction of the arrow.
B22
Bottom
APG Slider
CR Unit
Main Frame
CR Motor
1. Release the cable from four clamps on the Main Frame Assy.
2. Remove the two screws (S18: ), then remove the CR Motor from the Main Frame Assy.
Install the CR Motor with its cable holder facing upward.
C22
Cable
Clamps
Main Frame Assy
Cable holder
Front
No. Screw Type
S18
C.P.SCREW,3X4,F/ZN-3C
CR Motor
