Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 451
Confidential

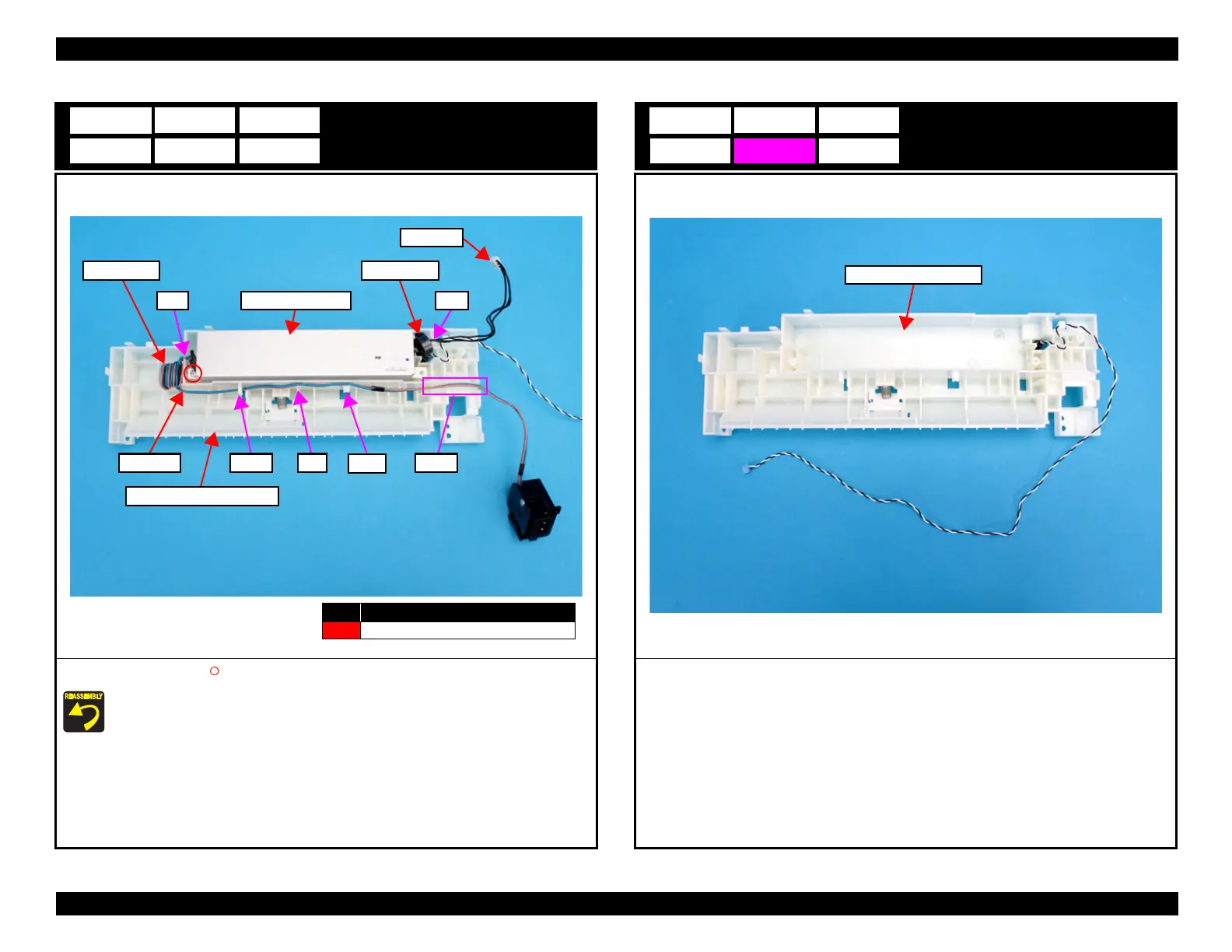

Power Supply Assy
1. Remove the screw (S4: ), then remove the Power Supply Assy.
 Route the AC Cable through the two slits, two hooks and guide on the Rea ASF Upper Guide
Assy.
 Route the PS Cable through the slit on the Rea ASF Upper Guide Assy.
E14
F14
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
PS Cable
AC Cable
Ferrite Core
Ferrite Core
Power Supply Assy
Slit
Slit
Slit
Guide
Hook
Hook
Rea ASF Upper Guide Assy
Paper Feed Sensor Unit
E15
F15
Paper Feed Sensor Unit
