EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 476
Confidential

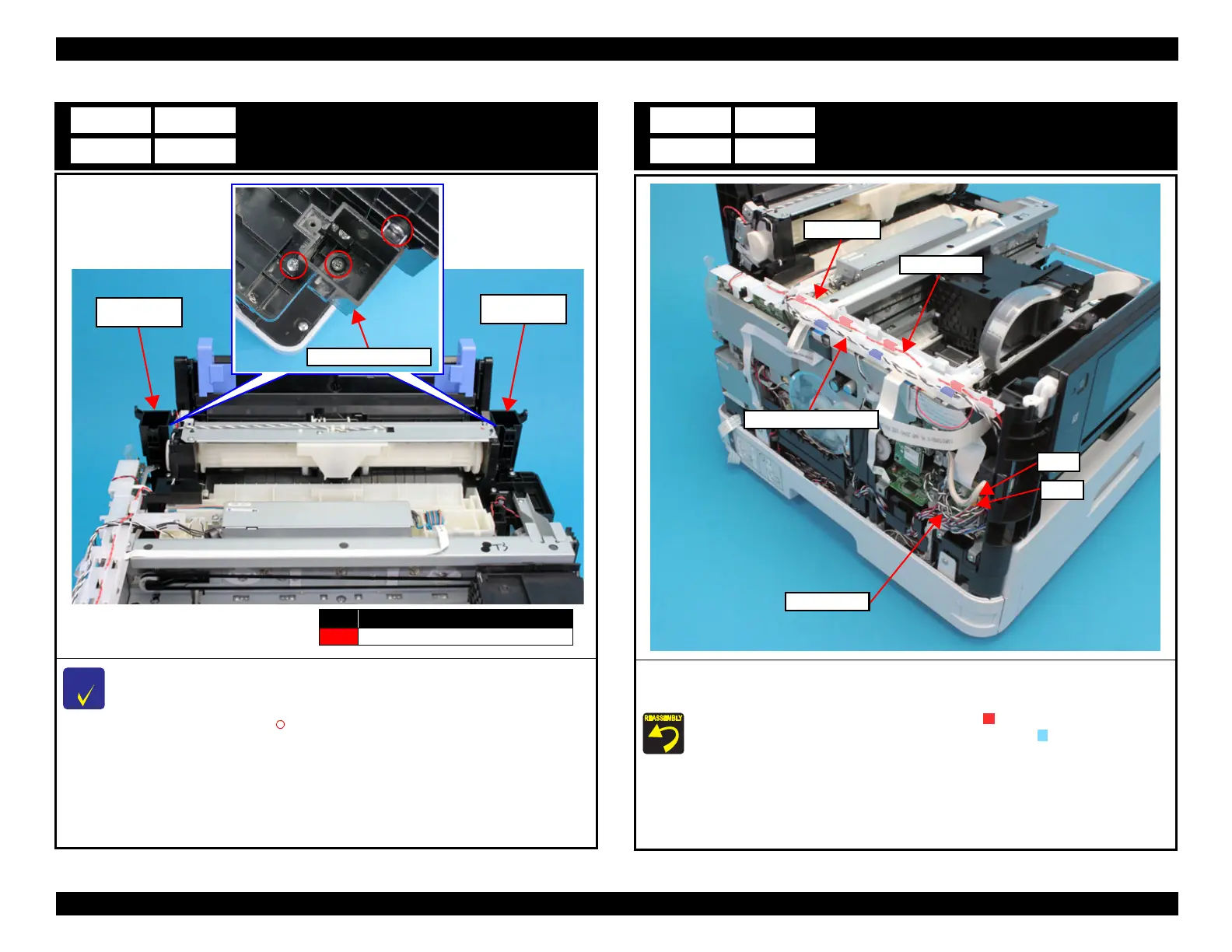

Hinge Lower Cover
C H E C K
P O I N T
When removing the Main Board Assy on the way to the target part, remove the Hinge
Assy (Left) only.
1. Remove the each three screws (S4: ), and remove the two Hinge Lower Cover.
A9 B9
C9 D9
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Hinge Lower
Cover (Right)
Hinge Lower
Cover (Left)
Hinge Lower Cover
Rear ASF Assy
1. Disconnect the cables from the connectors (CN51, CN56) on the Relay Board.
2. Release the solenoid cable and photo interrupter cable from the Cable Guide.
 Route the solenoid cable through the five hooks ( ) on the Cable Guide.
 Route the photo interrupter cable through the three hooks ( ) on the Cable Guide.
A10 B10
C10 D10
Solenoid cable
Photo interrupter cable
Cable Guide
CN51
CN56
Relay Board
