EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 477
Confidential

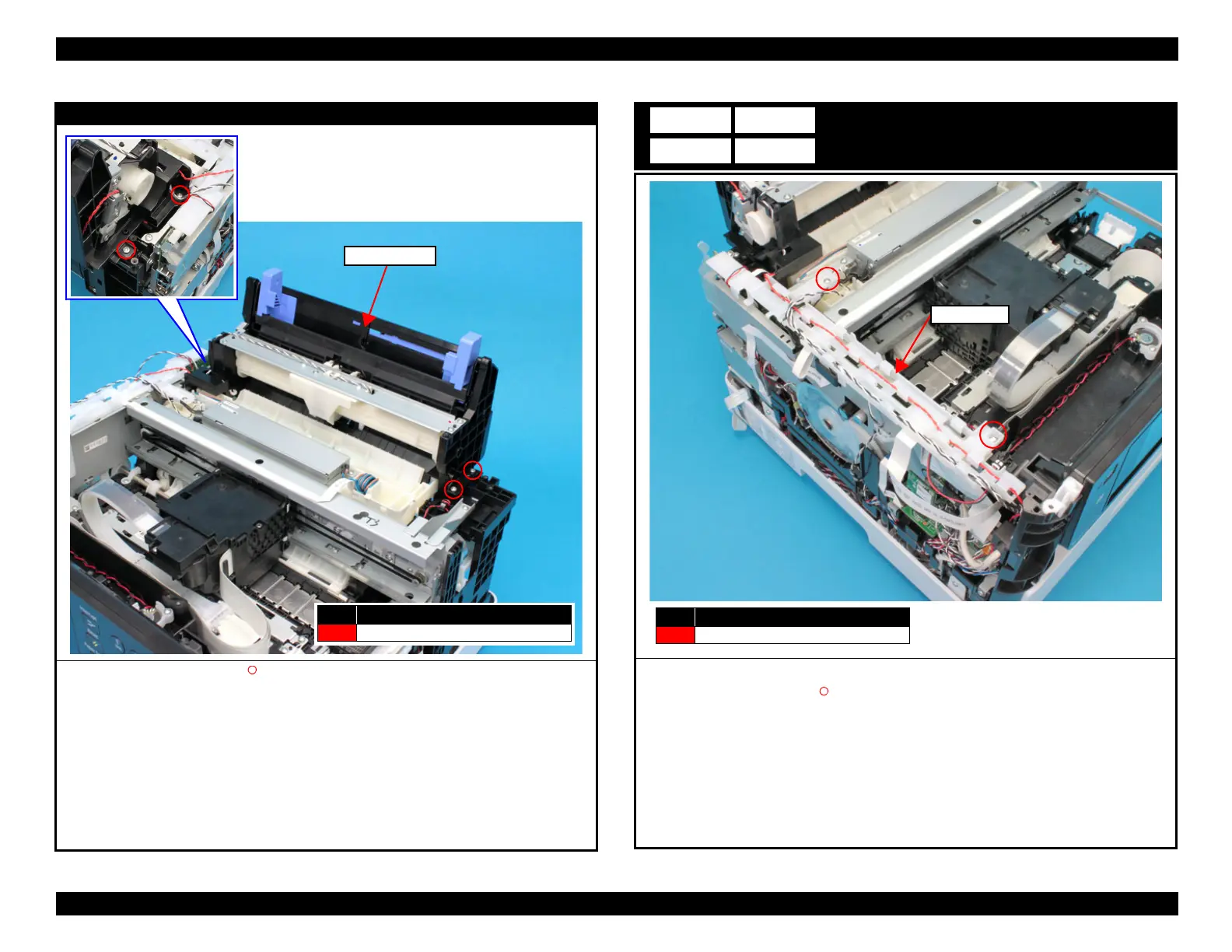

Rear ASF Assy
3. Remove the four screws (S4: ), and remove the Rear ASF Assy.
Rear ASF Assy
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Cable Guide
1. Release the all cable from the Cable Guide.
2. Remove the two screws (S4: ), and remove the Cable Guide.
A11 B11
C11 D11
Cable Guide
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
