Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 480
Confidential

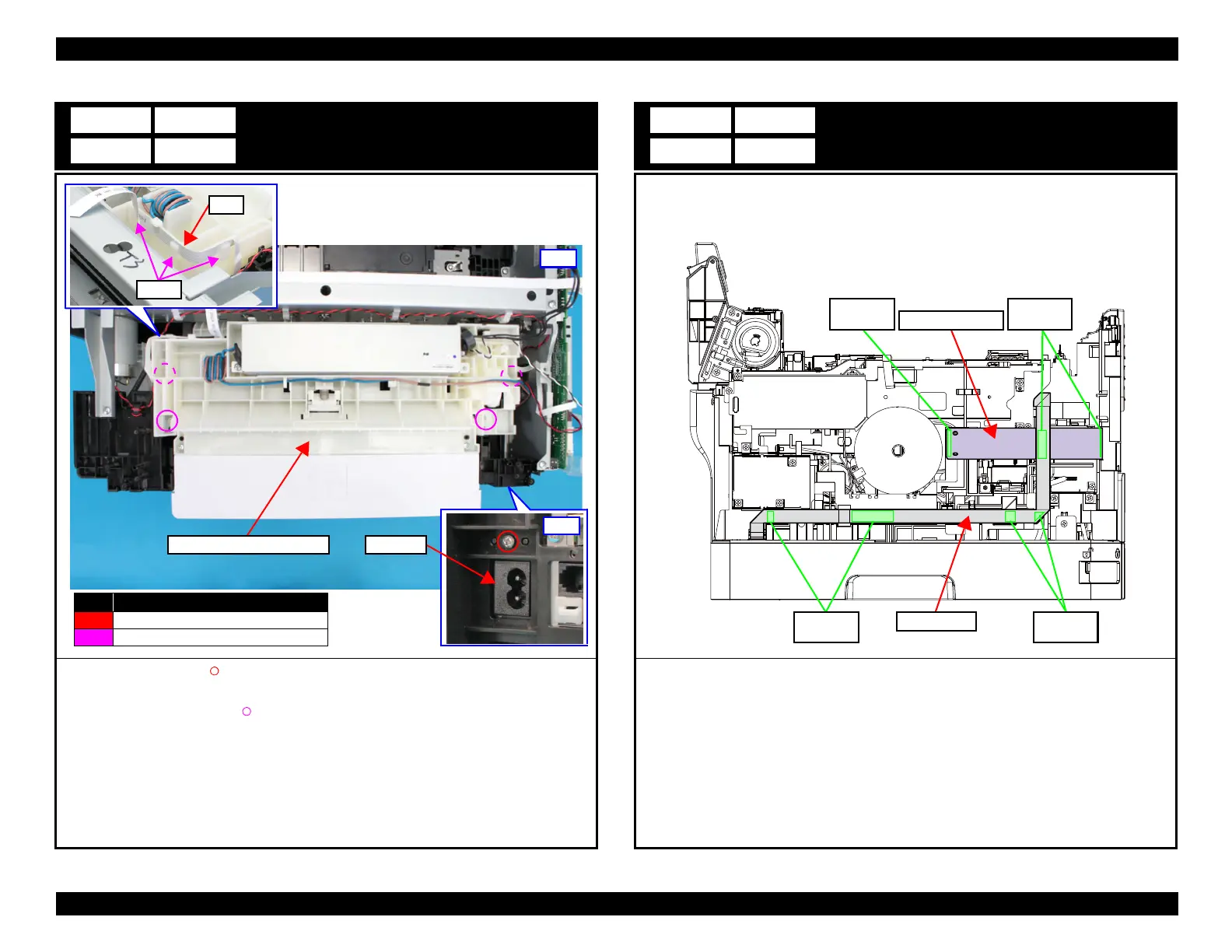

Rear ASF Upper Guide Assy
1. Remove the screw (S4: ) that secures the AC Inlet.
2. Release the FFC from three hooks on the Rear ASF Upper Guide Assy.
3. Remove the four screws (S4: ), then remove the Rear ASF Upper Guide Assy.
A15 B15
C15 D15
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Rear
Hooks
FFC
AC Inlet
Top
Rear ASF Upper Guide Assy
Main Board Assy
1. Peel off the CRCM FFC.
2. Peel off the CRCM FFC Sheet.
A16 B16
C16 D16
CRCM FFC
CRCM FFC Sheet
Double-
sided tape
Double-
sided tape
Double-
sided tape
Double-
sided tape

Epson WF-C5210 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Operating System Support	Windows, Mac OS, Linux
Functions	Print
Ink Type	DURABrite Ultra Pigment Ink
Ink Colors	Black, Cyan, Magenta, Yellow
Print Technology	PrecisionCore
Monthly Duty Cycle	45, 000 pages
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Display	2.4" color LCD
Print Speed	Up to 24 ppm (black/color)
Input Tray Capacity	250 sheets
