Epson WF-C5210 Service Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 484
Confidential

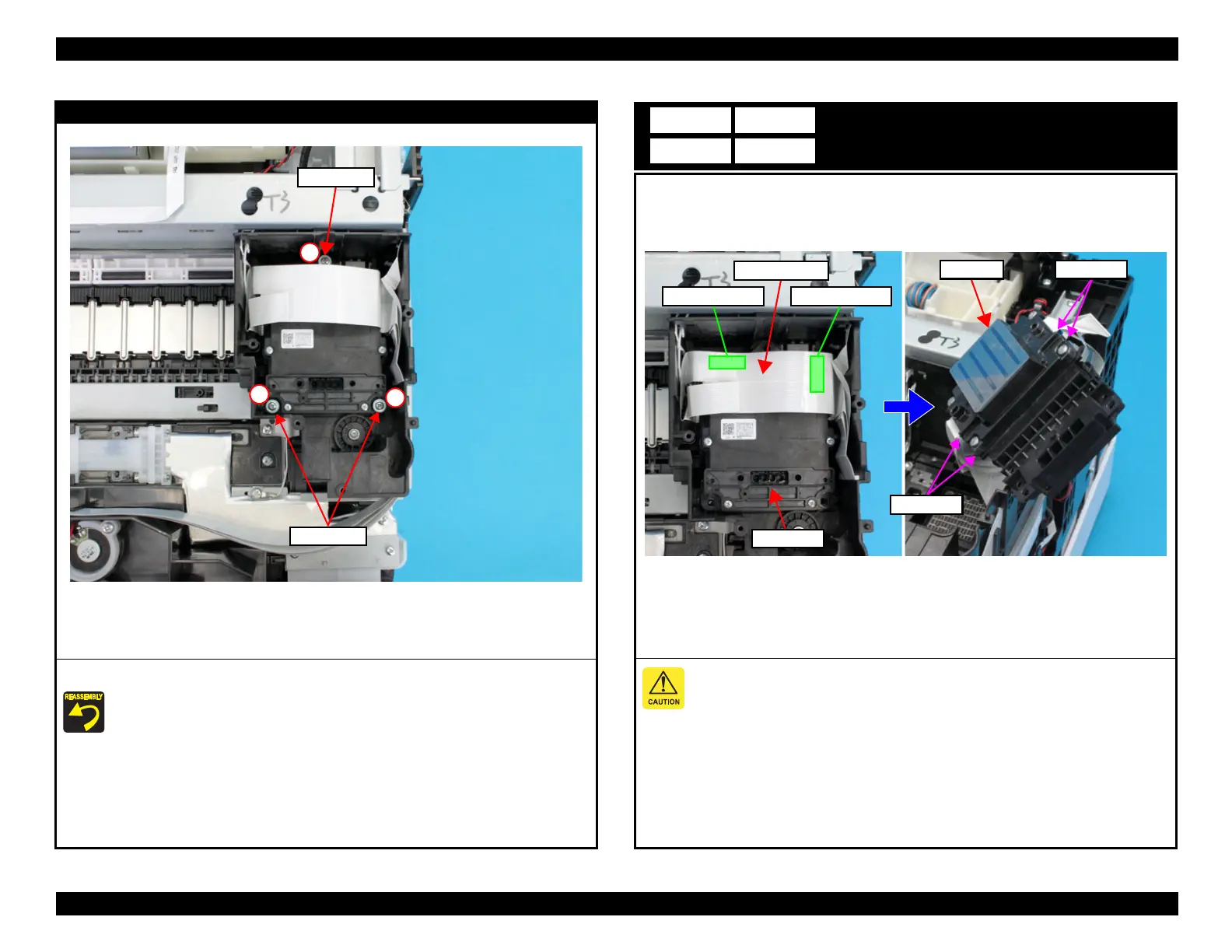

Head Screw Assy
2. Remove the three Head Screw Assy.
Tighten the screws in order given above.
Head Screw
Head Screw
2
1
3
Printhead
Do not touch the nozzle surface of the Printhead.
1. Peel off the Head FFC Assy from the Printhead, then remove the Printhead.
2. Disconnect the Head FFC Assy from the four connectors of the Printhead.
A19 B19
C19 D19
Head FFC Assy
Printhead
Double-sided tapeDouble-sided tape
Printhead
Connectors
Connectors
